Hummer 20KW Wind Turbine For Household






Hummer 20KW Wind Turbine For Household

Hummer 20KW Wind Turbine For Household

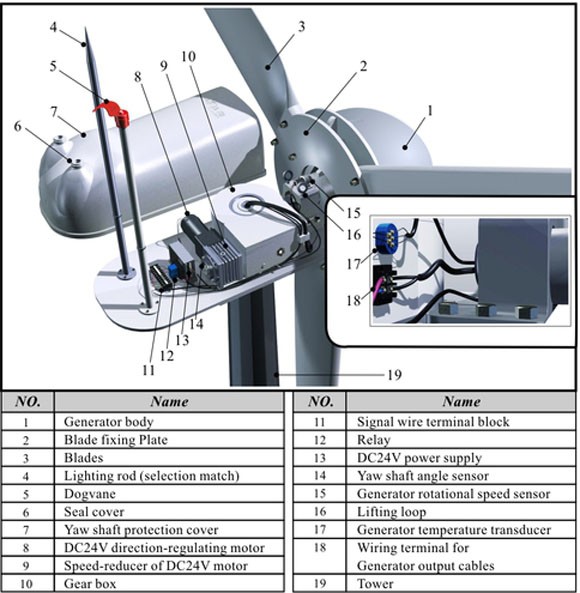

Hummer 20KW Wind Turbine For Household Structure

Hummer 20KW Wind Turbine For Household Structure

Hummer 20KW Wind Turbine For Household Structure

Hummer manufactures and offers advanced 20KW Wind Turbine For Household specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years, 20KW

Wind Turbine For Household have been exported to 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

20KW Wind Turbine For Household such as users manuals, data sheet, PDF documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300


20KW Wind Turbine For Household curve


20KW Wind Turbine For Household curve

H9.0-20KW Wind Turbine For Household specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф9.0m

Rated Power

20KW at 11.5m/s

Maximum Output Power

28KW at 15m/s

Battery Bank Voltage

240 Vdc

System Output Voltage

220/380 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.87

Wind Energy Utilizing Ratio

0.40 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

496 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking & Hydraulic Braking

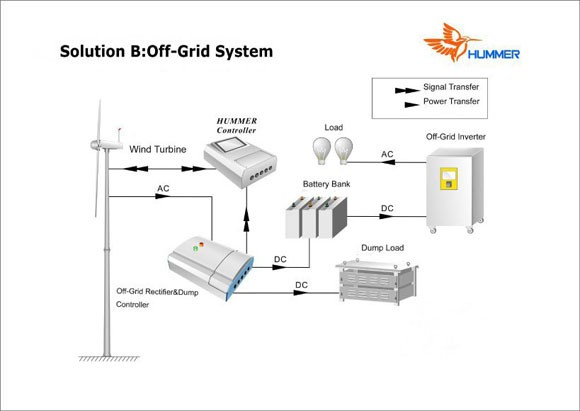

How 20KW Wind Turbine For Household works

How 20KW Wind Turbine For Household works
