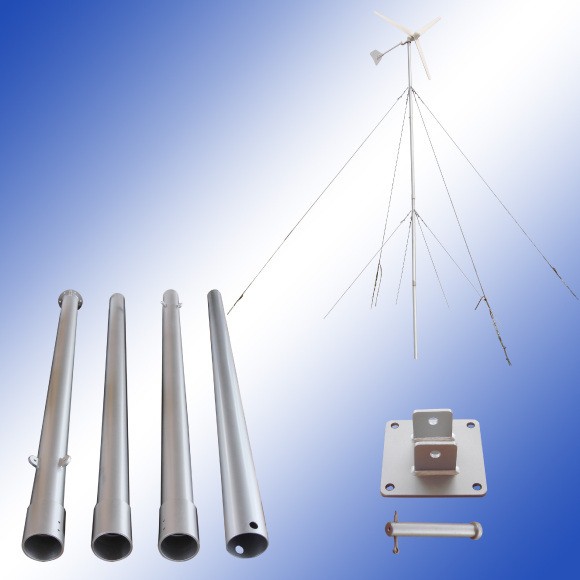

Hummer 2KW Home Wind Generator

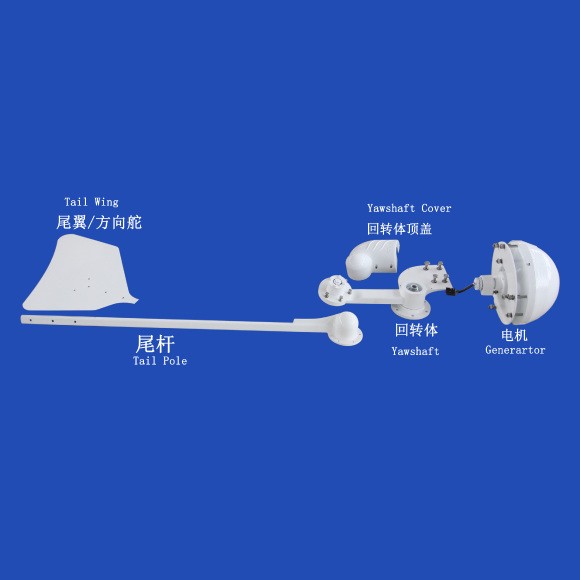

Hummer 2KW Home Wind Generator Structure
Hummer manufactures and offers advanced 2KW Home Wind Generator specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,
etc. Our products are third party certified and during the past 10 years, 2KW Home Wind Generator
have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the
UK, Italy, France, India, Spain etc. For more information on 2KW Home Wind Generator such as
users manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
Hummer 2KW Home Wind Generator curve
H3.8-2000W Home Wind Generator Specifications
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
Ф3.8 m / 12.5 ft
Swept Area
11.35 m2 / 122.2 ft2
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
2 kW @ 11m/s / 24.6 mph
Maximum Output Power
2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage
120 Vdc
System Output Voltage
110/220 Vac
Cut-in Wind Speed
3 m/s / 6.7 mph
Rated rotating rate
450 r/min
Working Wind Speed
3-25 m/s / 6.7-82.2 mph
Survival Wind Speed
50 m/s / 164 mph
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
25 kg / 55.1 lbs
Generator Efficiency
>0.80
Wind Energy Utilizing Ratio
0.45 Cp
Energy monitoring & User control
LED display
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Passive furling tail design
Shutting Down Method
Manual & Automatic electromagnetism Braking
Warranty
2 years for generator and 1 year for other parts

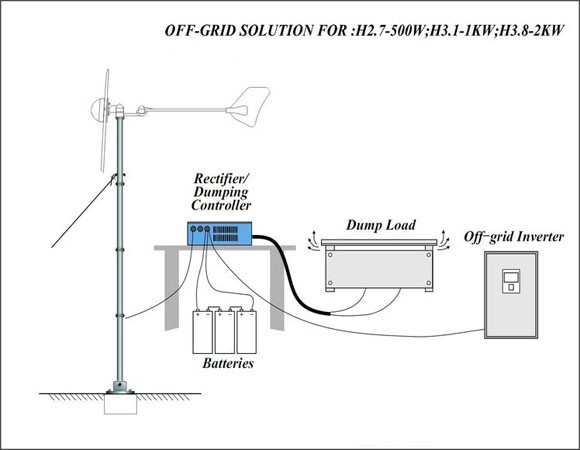

How 2KW Home Wind Generator works
