Hummer 2KW Home Wind Power



  • Products Visitors:1551
  • Product Name:Hummer 2KW Home Wind Power
  • Size:3.8m wind blades, 10m guyed tower
  • Model:H3.8-2KW
  • Package:0.871 CBM, 7 Packages

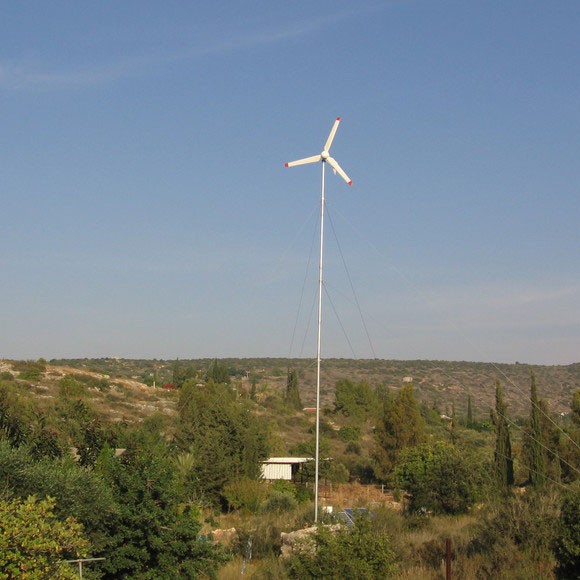

Hummer 2KW Home Wind Power

Hummer 2KW Home Wind Power

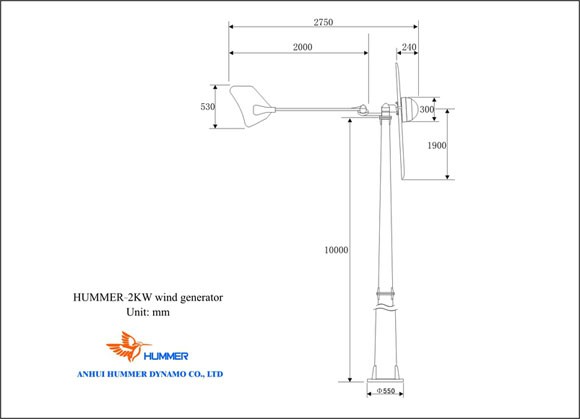

2KW Home Wind Power Structure

2KW Home Wind Power Structure

2KW Home Wind Power Structure

2KW Home Wind Power Structure

Hummer manufactures and offers advanced 2KW Home Wind Power specifically designed for

residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.

Our products are third party certified and during the past 10 years, Hummer 2KW Home Wind Power

 have been exported  to 91 countries and areas, such as the USA, Canada, Australia, Germany, the

UK, Italy, France, India, Spain etc. For more information on Hummer 2KW Home Wind Power such as

 users manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

Hummer 2KW Home Wind Power curve

Hummer 2KW Home Wind Power curve



H3.8-2000W Home Wind Power Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts



How 2KW Home Wind Power works

How 2KW Home Wind Power works
