Hummer 2KW Horizontal Wind Generator

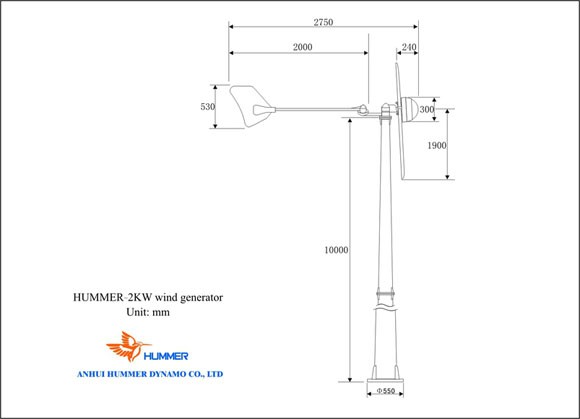

Hummer 2KW Horizontal Wind Generator Structure
Hummer manufactures and offers advanced 2KW Horizontal Wind Generator specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are
third party certified and during the past 10 years, 2KW Horizontal Wind Generator have been exported to 91
countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.
For more information on 2KW Horizontal Wind Generator such as users manuals, data sheet, PDFdocuments,
certifications please email us sales@allwindturbine.com or call 086 551 65314300
Hummer 2KW Horizontal Wind Generator curve
H3.8-2KW Horizontal Wind Generator specifications |
|
Configuration |
3 Blades, Horizontal axis, upwind |
Rotor Diameter |
Ф3.8m |
Rated Power |
2kW at 9m/s |
Maximum Output Power |
3.5kW at 14m/s |
Battery Bank Voltage |
120 Vdc |
System Output Voltage |
110/220 Vac |
Cut-in Wind Vpeed |
2.5 m/s |
Working Wind Speed |
3-25 m/s |
Survival Wind Speed |
50 m/s |
Generator Efficiency |
>0.80 |
Wind Energy Utilizing Ratio |
0.45 Cp |
Alternator |
Permanent magnet alternator, SCF technology |
Alternator Weight (kg) |
25 kg |
Gearbox |
None, Direct drive, front generator design |
Blade Material |
Fiberglass reinforced composite |
Over Speed Regulation |
Passive furling tail design |
Shutting Down Method |
Manual & Automatic electromagnetism Braking |

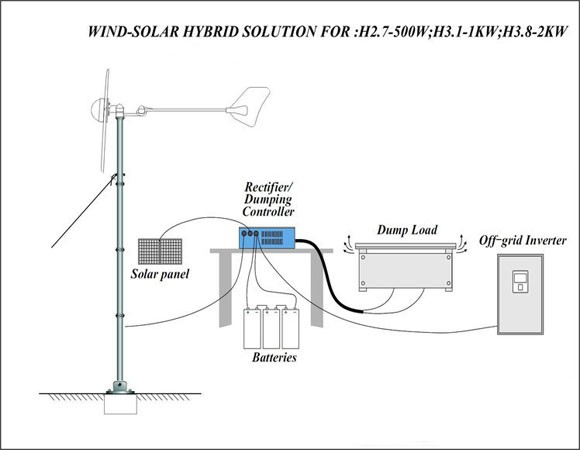

How 2KW Horizontal Wind Generator works
