Hummer 2KW Micro Wind Turbine



  • Products Visitors:2779
  • Product Name:Hummer 2KW Micro Wind Turbine
  • Model:H3.8-2KW
  • Size:3.8m wind blades, 10m guyed tower
  • Package:0.871 CBM, 7 Packages



Hummer 2KW Micro Wind Turbine

Hummer 2KW Micro Wind Turbine

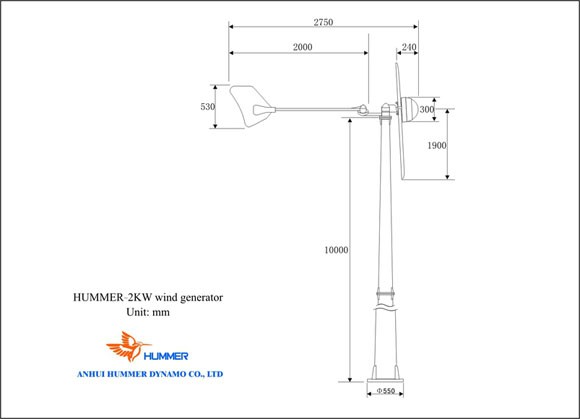

Hummer 2KW Micro Wind Turbine Structure

Hummer 2KW Micro Wind Turbine Structure

Hummer 2KW Micro Wind Turbine Structure

Hummer 2KW Micro Wind Turbine Structure

Hummer manufactures and offers advanced 2KW Micro Wind Turbine specifically designed for residential

houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are

third party certified and during the past 10 years,  2KW Micro Wind Turbine have been exported to 91

countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.

For more information on 2KW Micro Wind Turbine such as users manuals, data sheet, PDFdocuments,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

Hummer 2KW Micro Wind Turbine curve

Hummer 2KW Micro Wind Turbine curve


H3.8-2KW Micro Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф3.8m

Rated Power

2kW at 9m/s

Maximum Output Power

3.5kW at 14m/s

Battery Bank Voltage

120 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.80

Wind Energy Utilizing Ratio

0.45 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

25 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking


How 2KW Micro Wind Turbine works

How 2KW Micro Wind Turbine works
