Hummer 30KW Home Wind Power



  • Products Visitors:1846
  • Product Name:Hummer 30KW Home Wind Power
  • Package:19.346 CBM, 10 Packages
  • Size:18m hydraulic tower
  • Model:H10.0-30KW

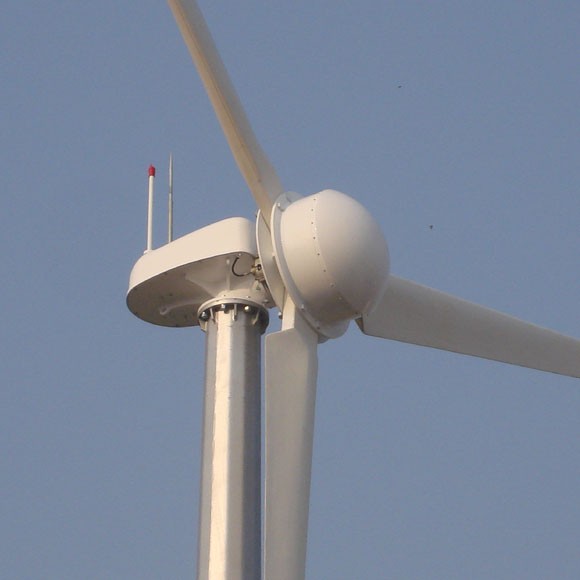

Hummer 30KW Home Wind Power

Hummer 30KW Home Wind Power

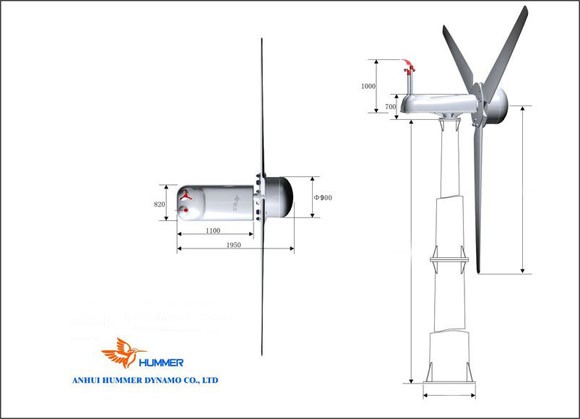

30KW Home Wind Power Structure

30KW Home Wind Power Structure

30KW Home Wind Power Structure

Hummer manufactures and offers advanced 30KW Home Wind Power specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 30KW Home

Wind Power have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on 30KW Home Wind Power

such as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

30KW Home Wind Power curve

30KW Home Wind Power curve



H10.0-30KW Home Wind Power Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф10.0 m / 32.8 ft
Swept Area 78.54 m2 / 845.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 30 kW @ 11m/s / 24.6 mph
Maximum Output Power 33 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 360 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 160 r/min
Working Wind Speed 3-25 m/s / 6.7-82.7  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 824 kg / 1816.6 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

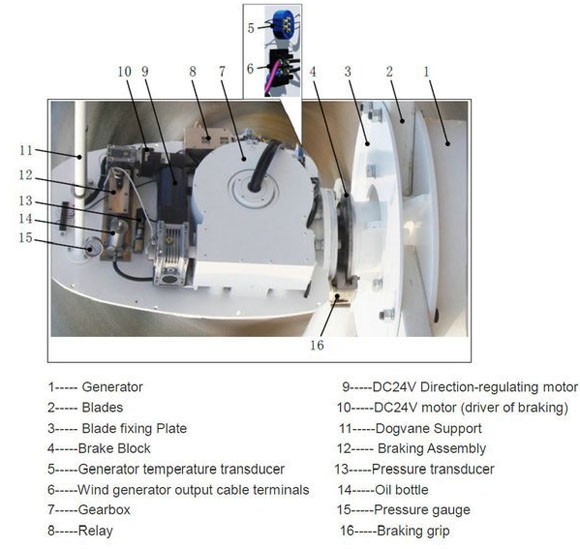

 How 30KW Home Wind Power works

How 30KW Home Wind Power works
