Hummer 30KW Horizontal Wind Generator

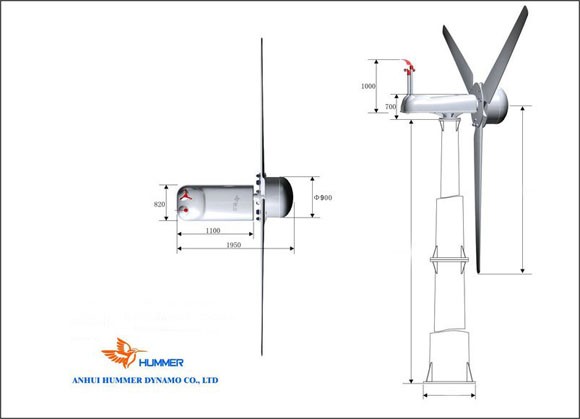

30KW Horizontal Wind Generator Structure
Hummer manufactures and offers advanced 30KW Horizontal Wind Generator specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,
etc. Our products are third party certified and during the past 10 years, Hummer 30KW
Horizontal Wind Generator have been exported to 91 countries and areas, such as the USA,
Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on
30KW Horizontal Wind Generator such as users manuals, data sheet, PDF documents,
certifications please email us sales@allwindturbine.com or call 086 551 65314300

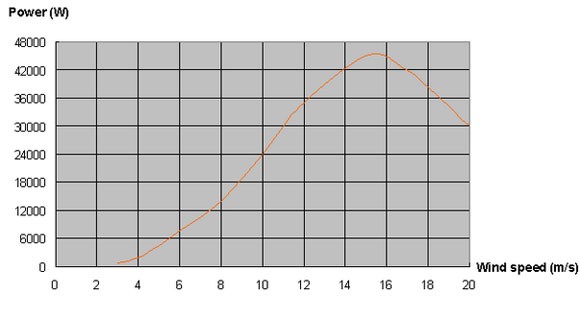

30KW Horizontal Wind Generator curve
H10.0-30KW Horizontal Wind Generator specifications |
|
Configuration |
3 Blades, Horizontal axis, upwind |
Rotor Diameter |
Ф10.0m |
Rated Power |
30KW at 11m/s |
Maximum Output Power |
45KW at 15m/s |
Battery Bank Voltage |
360 Vdc |
System Output Voltage |
380 Vac |
Cut-in Wind Vpeed |
3 m/s |
Working Wind Speed |
3-25 m/s |
Survival Wind Speed |
50 m/s |
Generator Efficiency |
>0.92 |
Wind Energy Utilizing Ratio |
0.42 Cp |
Energy Monitoring & User Control |
Siemens PLC controller with touch screen |
Alternator |
Permanent magnet alternator, SCF technology |
Alternator Weight (kg) |
800 kg |
Gearbox |
None, Direct drive, front generator design |
Blade Material |
Fiberglass reinforced composite |
Over Speed Regulation |
Auto Yawing |
Shutting Down Method |
Manual & Automatic electromagnetism Braking & Hydraulic Braking |
