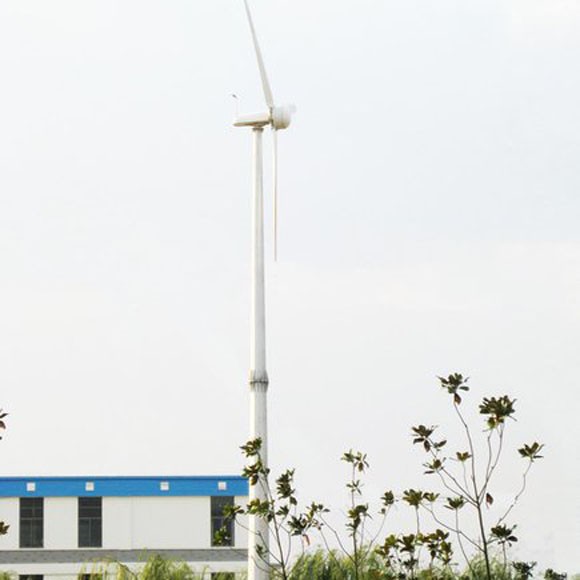

Hummer 30KW Micro Wind Turbine






Hummer 30KW Micro Wind Turbine

Hummer 30KW Micro Wind Turbine

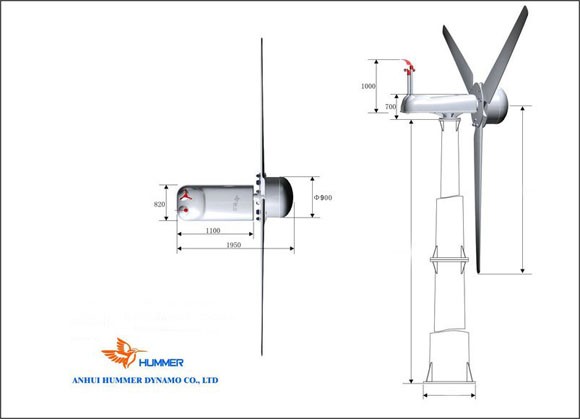

30KW Micro Wind Turbine Structure

30KW Micro Wind Turbine Structure

30KW Micro Wind Turbine Structure

Hummer manufactures and offers advanced 30KW Micro Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 30KW Micro

Wind Turbine have been exported to 91 countries and areas, such as the USA, Canada,

Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on 30KW

Micro Wind Turbine such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300

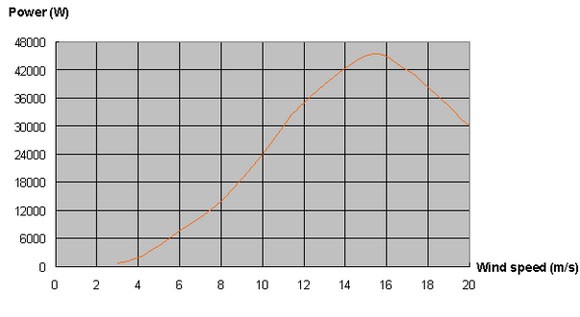

30KW Micro Wind Turbine curve

30KW Micro Wind Turbine curve

H10.0-30KW Micro Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф10.0m

Rated Power

30KW at 11m/s

Maximum Output Power

45KW at 15m/s

Battery Bank Voltage

360 Vdc

System Output Voltage

380 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.92

Wind Energy Utilizing Ratio

0.42 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

800 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking & Hydraulic Braking

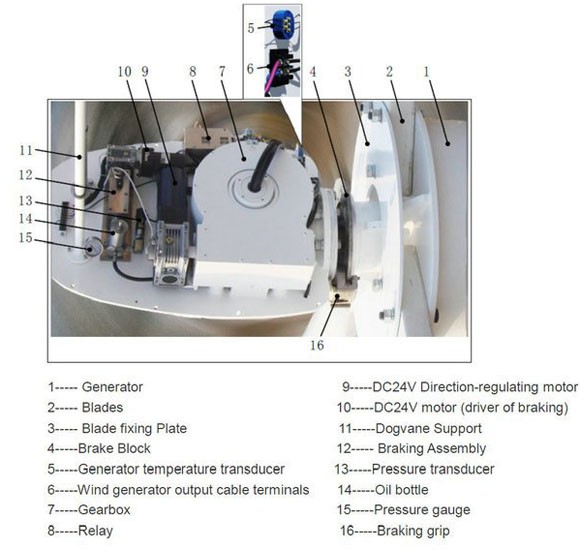

How 30KW Micro Wind Turbine works

How 30KW Micro Wind Turbine works
