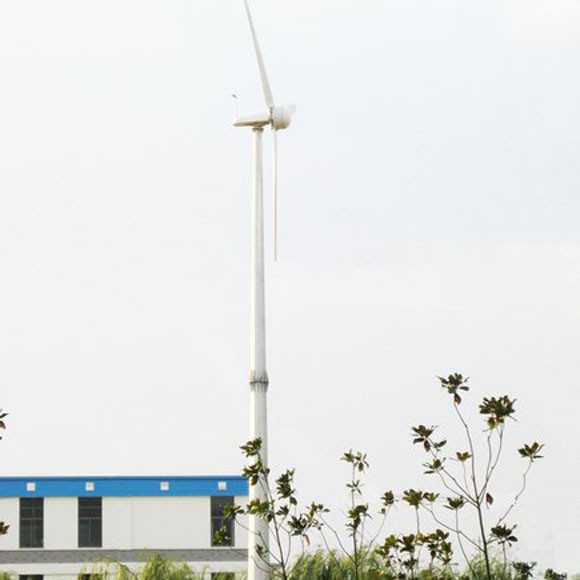

Hummer 30KW Wind Turbine For Household






Hummer 30KW Wind Turbine For Household

Hummer 30KW Wind Turbine For Household

Adopting SCF supercritical technology and two SKF bearings. Siemens PLC controller with

human-oriented touch screen, which can realize real-time monitoring. With multiple protections,

including auto yawing, hydraulic braking and electro-dynamic braking etc. Optional off grid and

grid connected system.

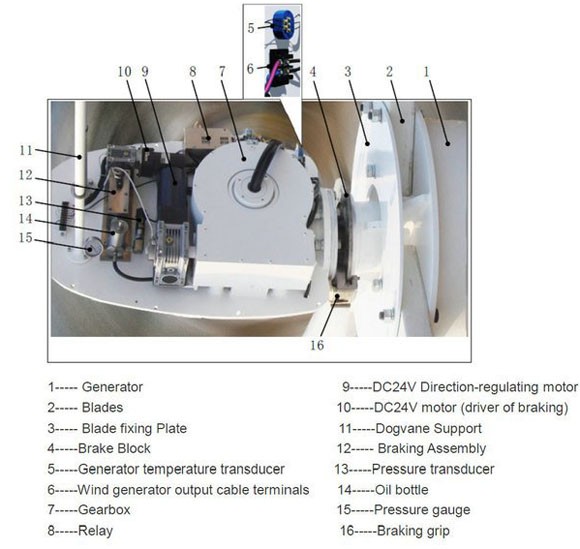

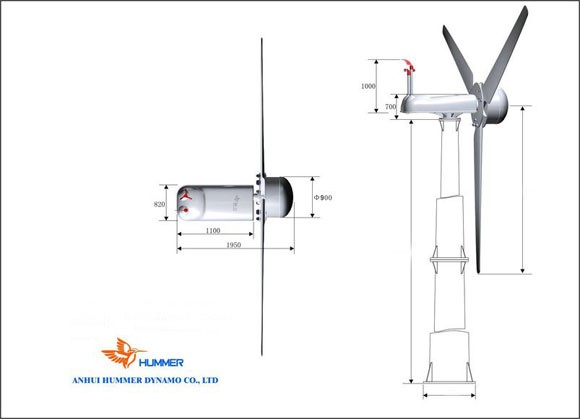

30KW  Wind Turbine For Household Structure


30KW  Wind Turbine For Household Structure

30KW  Wind Turbine For Household Structure

Hummer manufactures and offers advanced 30KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 30KW

Wind Turbine For Household have been exported to 91 countries and areas, such as the USA,

Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

30KW Wind Turbine such as users manuals, data sheet, PDF documents,

certifications please email us sales@allwindturbine.com or call 086 551 65314300

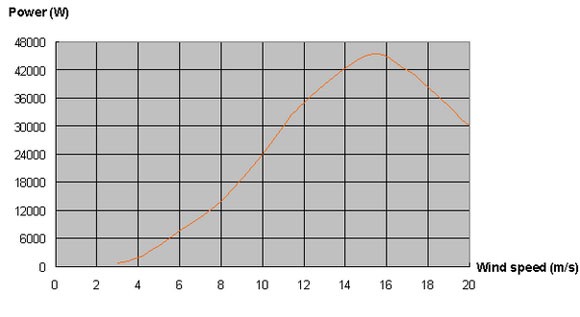

30KW Wind Turbine For Household curve

30KW Wind Turbine For Household curve

H10.0-30KW Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф10.0m

Rated Power

30KW at 11m/s

Maximum Output Power

45KW at 15m/s

Battery Bank Voltage

360 Vdc

System Output Voltage

380 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.92

Wind Energy Utilizing Ratio

0.42 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

800 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking & Hydraulic Braking

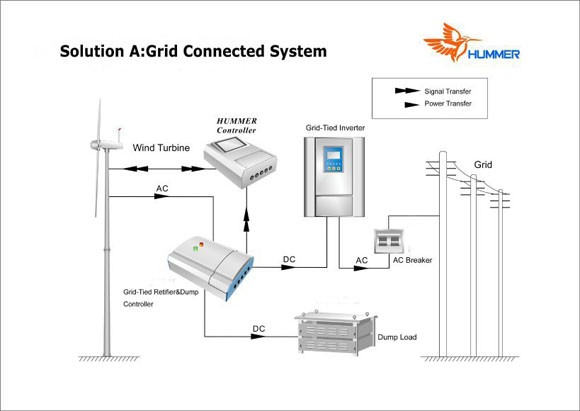

How 30KW Wind Turbine For Household works

How 30KW Wind Turbine For Household works
