Hummer 3KW Home Wind Power



  • Products Visitors:1446
  • Product Name:Hummer 3KW Home Wind Power
  • Package:1.338 CBM, 8 Packages

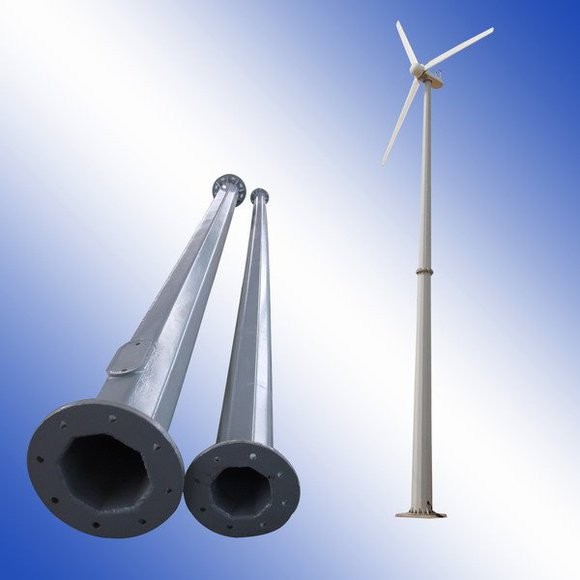

  • Size:12m free standing tower
  • Model:H4.6-3KW

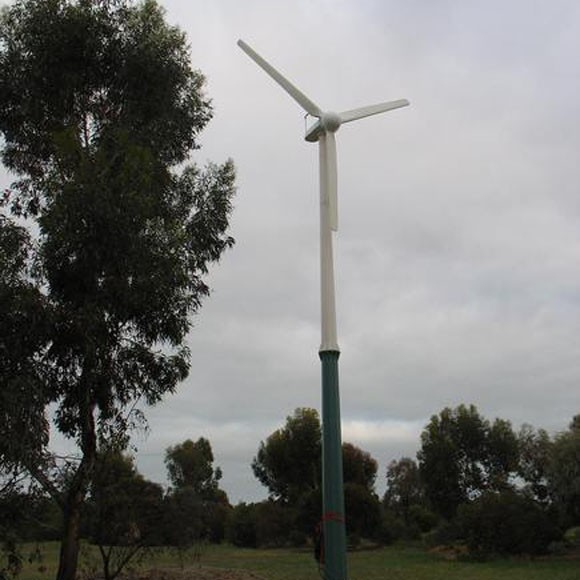

Hummer 3KW Home Wind Power

Hummer 3KW Home Wind Power

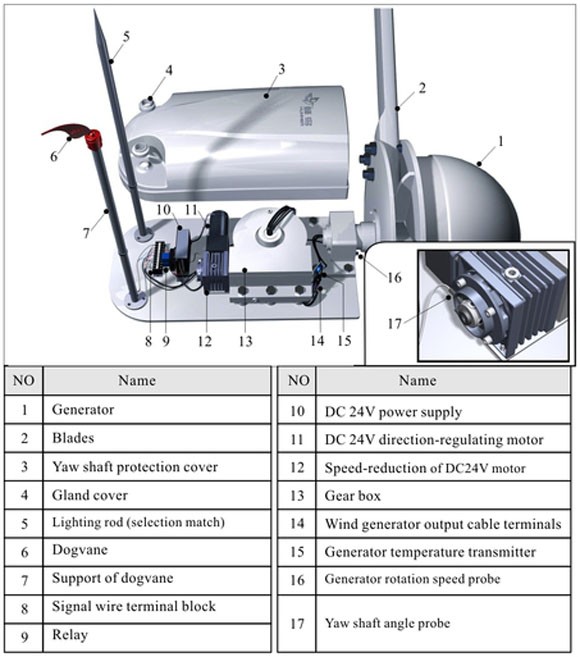

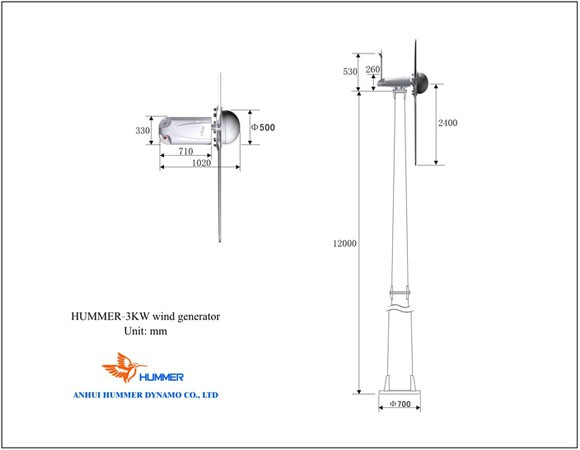

3KW Home Wind Power Structure

3KW Home Wind Power Structure

3KW Home Wind Power Structure

3KW Home Wind Power Structure

Hummer manufactures and offers advanced 3KW Home Wind Power specifically designed for

residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, Hummer 3KW Home

Wind Power have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on Hummer 3KW Home

Wind Power such as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

Hummer 3KW Home Wind Power curve

Hummer 3KW Home Wind Power curve



H4.6-3KW Home Wind Power Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф4.9 m / 16.1 ft
Swept Area 18.86 m2 / 203.0 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3 kW @ 10m/s / 22.4 mph
Maximum Output Power 3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s / 6.7-82.3  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 72 kg / 158.7 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

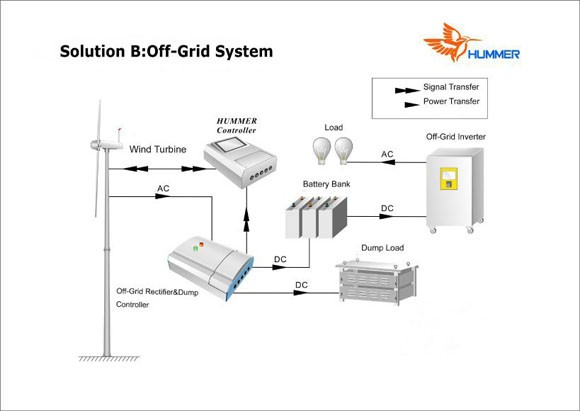

  How 3KW Home Wind Power works

How 3KW Home Wind Power works
