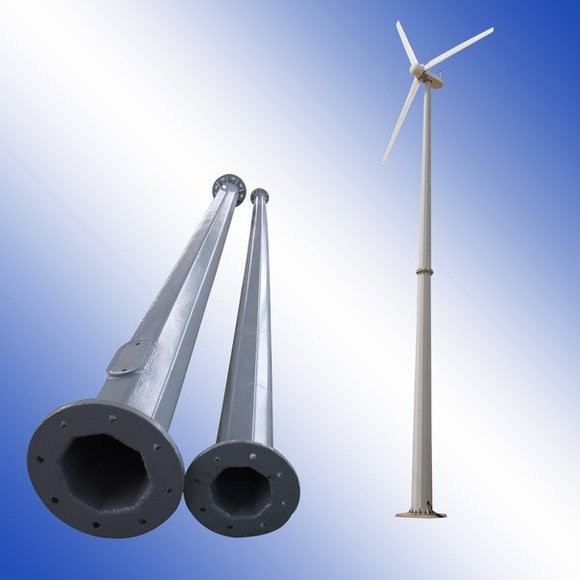

Hummer 3KW Horizontal Wind Generator






Hummer 3KW Horizontal Wind Generator

Hummer 3KW Horizontal Wind Generator

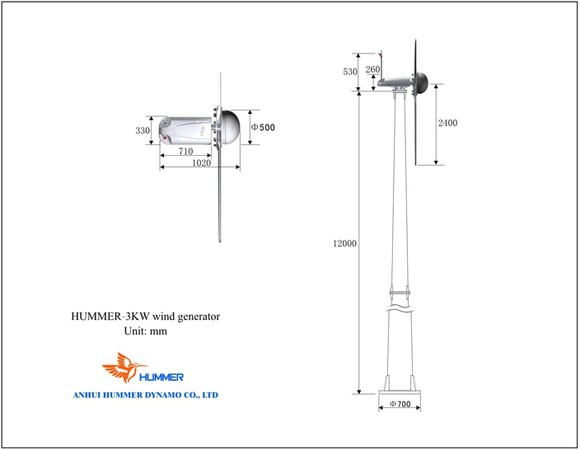

3KW Horizontal Wind Generator Structure

3KW Horizontal Wind Generator Structure

3KW Horizontal Wind Generator Structure

3KW Horizontal Wind Generator Structure

Hummer manufactures and offers advanced 3KW Horizontal Wind Generator specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.

Our products are third party certified and during the past 10 years, Hummer 3KW Horizontal Wind Generator

have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,

 Italy, France, India, Spain etc. For more information on Hummer 3KW Horizontal Wind Generator such as users

manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

Hummer 3KW Horizontal Wind Generator curve

Hummer 3KW Horizontal Wind Generator curve

H4.6-3KW Horizontal Wind Generator specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф4.6m

Rated Power

3KW at 10m/s

Maximum Output Power

4.5KW at 15m/s

Battery Bank Voltage

180 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.8

Wind Energy Utilizing Ratio

0.40 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

71.8 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking

How 3KW Horizontal Wind Generator works

How 3KW Horizontal Wind Generator works
