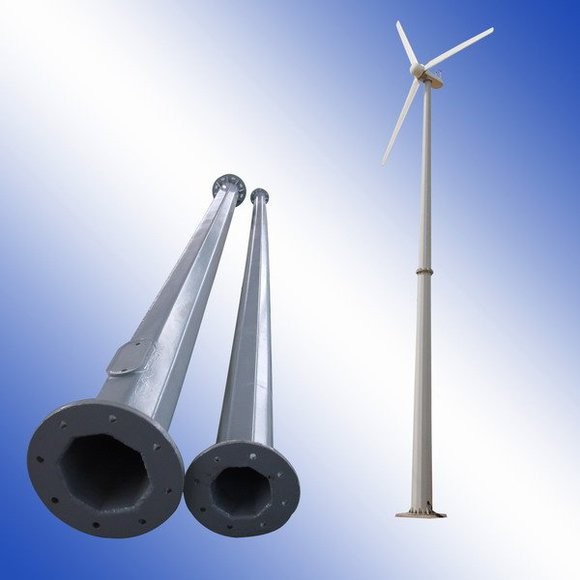

Hummer 3KW Micro Wind Turbine






Hummer 3KW Micro Wind Turbine

Hummer 3KW Micro Wind Turbine

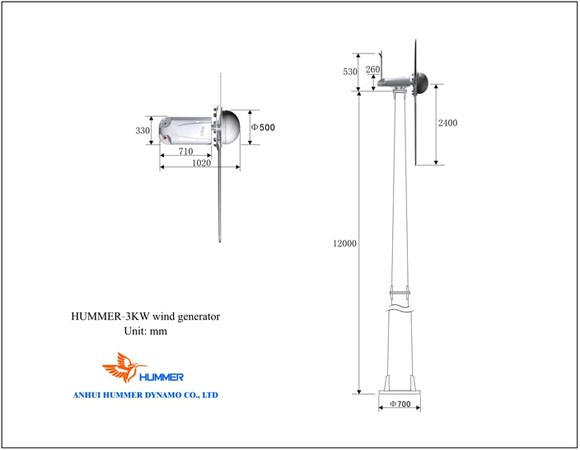

3KW Micro Wind Turbine Structure

3KW Micro Wind Turbine Structure

3KW Micro Wind Turbine Structure

3KW Micro Wind Turbine Structure

Hummer manufactures and offers advanced 3KW Micro Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Our products are third party certified and during the past 10 years,

Hummer 3KW Micro Wind Turbine have been exported to 91 countries and areas, such

as the USA, Canada, Australia, Germany, the UK,Italy, France, India, Spain etc. For

more information on Hummer 3KW Micro Wind Turbine such as users manuals, data sheet,

PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

Hummer 3KW Micro Wind Turbine curve

Hummer 3KW Micro Wind Turbine curve

H4.6-3KW Micro Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф4.6m

Rated Power

3KW at 10m/s

Maximum Output Power

4.5KW at 15m/s

Battery Bank Voltage

180 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

2.5 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.8

Wind Energy Utilizing Ratio

0.40 Cp

Energy Monitoring & User Control

Siemens PLC controller with touch screen

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

71.8 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Auto Yawing

Shutting Down Method

Manual & Automatic electromagnetism Braking

How 3KW Micro Wind Turbine works

How 3KW Micro Wind Turbine works
