Hummer 3KW Wind Turbine For Sale

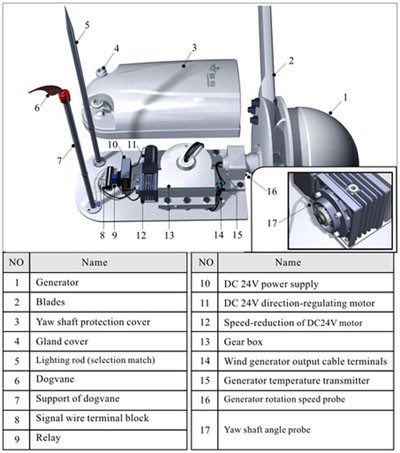

3KW Wind Turbine Structure
Hummer manufactures and offers advanced 3KW Wind Turbine specifically designed
for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.
Our products are third party certified and during the past 10 years, Hummer 3KW Wind Turbine
have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,
Italy, France, India, Spain etc. For more information on Hummer 3KW Wind Turbine such as users
manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300
Hummer 3KW Wind Turbine curve
H4.6-3KW Specifications
Configuration
3 Blades, Horizontal axis, Upwind
Rotor Diameter
Ф4.9 m / 16.1 ft
Swept Area
18.86 m2 / 203.0 ft2
Direction of Rotation
Clockwise looking upwind
Blade Material
Fiberglass reinforced composite
Rated Power
3 kW @ 10m/s / 22.4 mph
Maximum Output Power
3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage
180 Vdc
System Output Voltage
110/220 Vac
Cut-in Wind Speed
3 m/s / 6.7 mph
Rated rotating rate
265 r/min
Working Wind Speed
3-25 m/s / 6.7-82.3 mph
Survival Wind Speed
50 m/s / 164 mph
Alternator
Permanent magnet alternator, SCF technology
Alternator Weight
72 kg / 158.7 lbs
Generator Efficiency
>0.80
Wind Energy Utilizing Ratio
0.40 Cp
Energy monitoring & User control
Siemens PLC controller with touch screen
Gearbox
None, Direct drive with front generator design
Over Speed Regulation
Auto Yawing
Shutting Down Method
Manual & Automatic electromagnetism Braking
Warranty
2 years for generator and 1 year for other parts

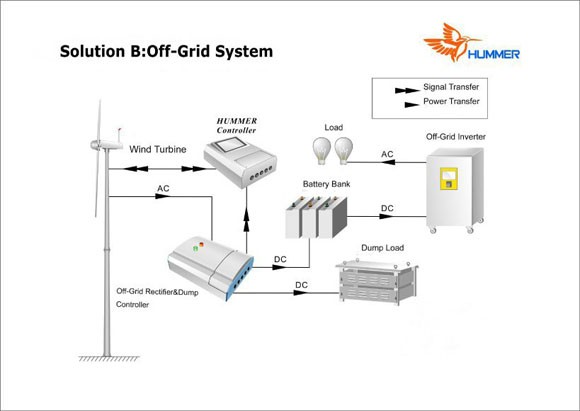

How 3KW Wind Turbine works
