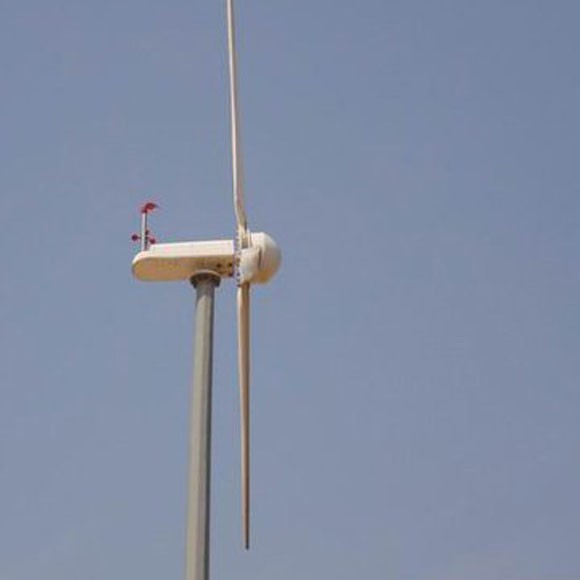

Hummer 3KW Wind Turbine For Telecom






3KW Wind Turbine For Telecom

3KW Wind Turbine For Telecom

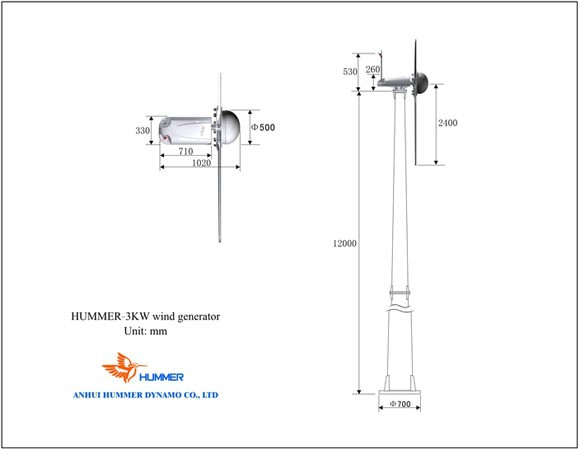

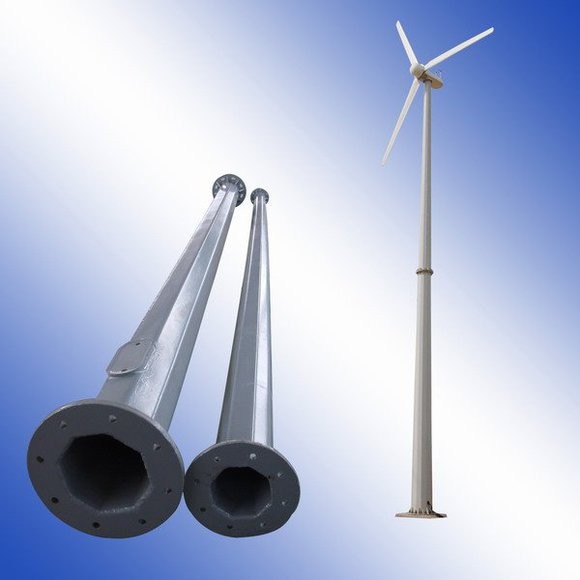

3KW Wind Turbine Structure

3KW Wind Turbine Structure

3KW Wind Turbine Structure

3KW Wind Turbine Structure

Hummer manufactures and offers advanced 3KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc.

Our products are third party certified and during the past 10 years, Hummer 3KW Wind Turbine

have been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,

 Italy, France, India, Spain etc. For more information on Hummer 3KW Wind Turbine such as users

manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

Hummer 3KW Wind Turbine curve

H6.4-5KW Specifications

H4.6-3KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф4.9 m / 16.1 ft
Swept Area 18.86 m2 / 203.0 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 3 kW @ 10m/s / 22.4 mph
Maximum Output Power 3.3 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 180 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 265 r/min
Working Wind Speed 3-25 m/s / 6.7-82.3  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 72 kg / 158.7 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts


How 3KW Wind Turbine works

How 3KW Wind Turbine works
