Hummer 500W Domestic Wind Generator


Hummer 500W Domestic Wind Generator

Hummer 500W Domestic Wind Generator

Hummer 500W Domestic Wind Generator Structure

Hummer 500W Domestic Wind Generator Structure

Hummer 500W Domestic Wind Generator Structure

Hummer manufactures and offers advanced 500W Domestic Wind Generator specifically designed for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are

third party certified and during the past 10 years, 500W Domestic Wind Generator have been exported

 to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain

 etc. For more information on 500W Domestic Wind Generator such as users manuals, data sheet, PDF

 documents, certifications please email us or call 086 551 65314300

Hummer 500W Domestic Wind Generator curve

Hummer 500W Domestic Wind Generator

H2.7-500W Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф2.7 m / 8.9 feet
Swept Area 5.73 m2 / 61.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 500W @ 11m/s / 24.6 mph
Maximum Output Power 570W @  20m/s / 44.7 mph
Battery Bank Voltage 24 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 600 r/min
Working Wind Speed 3-25 m/s / 6.7-82.0  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 6.5 kg / 14.3 lbs
Generator Efficiency >0.78
Wind Energy Utilizing Ratio 0.48 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

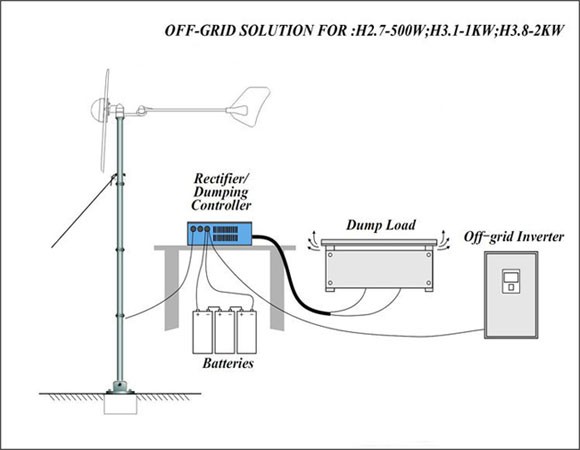

How 500W Domestic Wind Generator works

How 500W Domestic Wind Generator works
