Hummer 500W Home Wind Power
500W Home Wind Power Structure
Hummer manufactures and offers advanced 500W Home Wind Power specifically designed for residential
houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are
third party certified and during the past 10 years, Hummer 500W Home Wind Power have been exported
to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain
etc. For more information on Hummer 500W Home Wind Power such as users manuals, data sheet, PDF
documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300
Hummer 500W Home Wind Power curve
| H2.7-500W Home Wind Power Specifications | |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | Ф2.7 m / 8.9 feet |
| Swept Area | 5.73 m2 / 61.7 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 500W @ 11m/s / 24.6 mph |
| Maximum Output Power | 570W @ 20m/s / 44.7 mph |
| Battery Bank Voltage | 24 Vdc |
| System Output Voltage | 110/220 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph |
| Rated rotating rate | 600 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.0 mph |
| Survival Wind Speed | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 6.5 kg / 14.3 lbs |
| Generator Efficiency | >0.78 |
| Wind Energy Utilizing Ratio | 0.48 Cp |
| Energy monitoring & User control | LED display |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Passive furling tail design |
| Shutting Down Method | Manual & Automatic electromagnetism Braking |
| Warranty | 2 years for generator and 1 year for other parts |

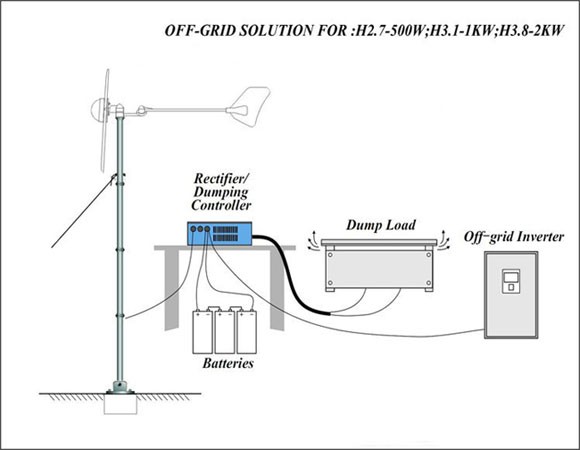

How 500W Home Wind Power works
