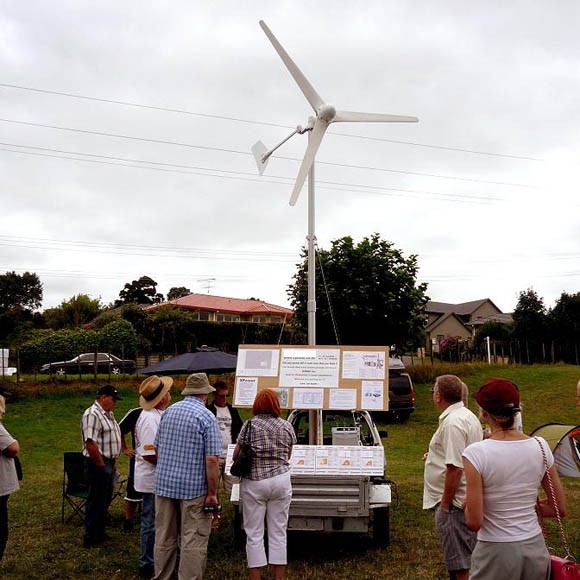

Hummer 500W Horizontal Wind Generator






Hummer 500W Horizontal Wind Generator

Hummer 500W Horizontal Wind Generator

Hummer 500W Horizontal Wind Generator Structure

Hummer 500W Horizontal Wind Generator Structure

Hummer 500W Horizontal Wind Generator Structure

Hummer manufactures and offers advanced 500W Horizontal Wind Generator specifically designed for residential

houses; farms; telecommunication stations; commercial wind farms; water-pumping, etc. Our products are

third party certified and during the past 10 years, 500W Horizontal Wind Generator have been exported

 to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain

 etc. For more information on 500W Horizontal Wind Generator such as users manuals, data sheet, PDF

 documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300


Hummer 500W Horizontal Wind Generator curve

Hummer 500W Horizontal Wind Generator curve


H2.7-500W Horizontal Wind Generator specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф2.7m

Rated Power

500W at 7m/s

Maximum Output Power

1 kW at 11m/s

Battery Bank Voltage

24 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.78

Wind Energy Utilizing Ratio

0.48 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

6.5 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking

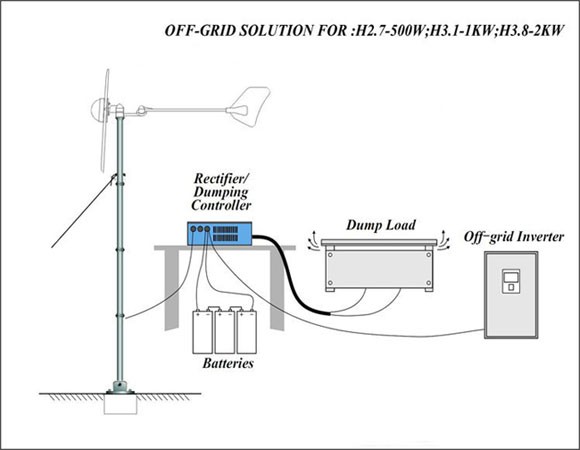

How 500W Horizontal Wind Generator works

How 500W Horizontal Wind Generator works
