Hummer 500W Micro Wind Turbine



  • Products Visitors:3317
  • Product Name:Hummer 500W Micro Wind Turbine
  • Package:0.283 CBM, 3 Packages
  • Size:2.7m wind blades, 6m guyed tower
  • Model:H2.7-500W



Hummer 500W Micro Wind Turbine

Hummer 500W Micro Wind Turbine

Hummer 500W Micro Wind Turbine Structure

Hummer 500W Micro Wind Turbine Structure

Hummer 500W Micro Wind Turbine Structure

Hummer manufactures and offers advanced 500W Micro Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

 water-pumping, etc. Our products are third party certified and during the past 10 years,

500W Micro Wind Turbine have been exported to 91 countries and areas, such as the

 USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc. For more

information on 500W Micro Wind Turbine such as users manuals, data sheet, PDF

 documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

Hummer 500W Micro Wind Turbine curve

Hummer 500W Micro Wind Turbine curve


H2.7-500W Micro Wind Turbine specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф2.7m

Rated Power

500W at 7m/s

Maximum Output Power

1 kW at 11m/s

Battery Bank Voltage

24 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.78

Wind Energy Utilizing Ratio

0.48 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

6.5 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking

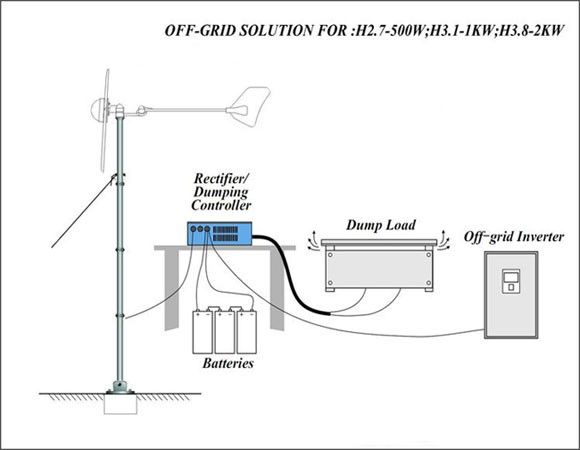

How 500W Micro Wind Turbine works

How 500W Micro Wind Turbine works
