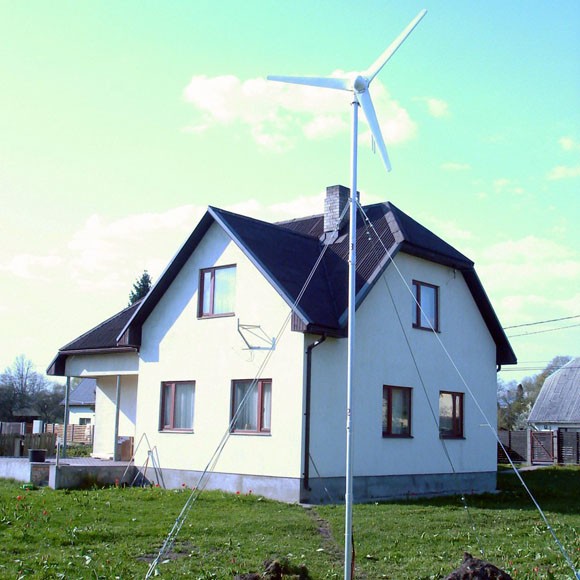

Hummer 500W Wind Turbine For House
Hummer 500W Wind Turbine For House Structure
Hummer manufactures and offers advanced 500W Wind Turbine specifically designed for
residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,
etc. Our products are third party certified and during the past 10 years, Hummer 500W Wind
Turbine For House have been exported to 91 countries and areas, such as the USA, Canada,
Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on Hummer
500W Wind Turbine For House such as users manuals, data sheet, PDF documents,
certifications please email us sales@allwindturbine.com or call 086 551 65314300
Hummer 500W Wind Turbine For House curve

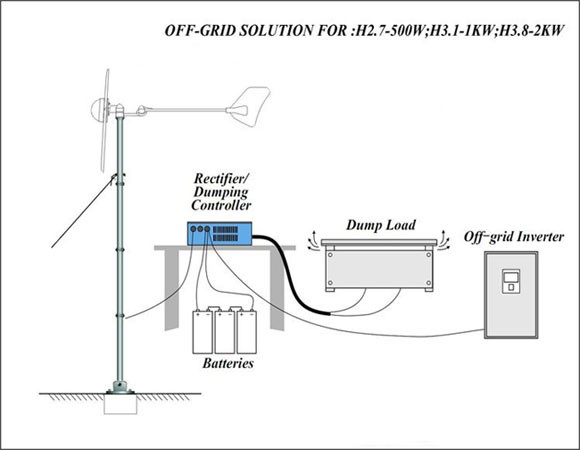

How 500W Wind Turbine For House works
H2.7-500W Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф2.7 m / 8.9 feet |
Swept Area | 5.73 m2 / 61.7 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 500W @ 11m/s / 24.6 mph |
Maximum Output Power | 570W @ 20m/s / 44.7 mph |
Battery Bank Voltage | 24 Vdc |
System Output Voltage | 110/220 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 600 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.0 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 6.5 kg / 14.3 lbs |
Generator Efficiency | >0.78 |
Wind Energy Utilizing Ratio | 0.48 Cp |
Energy monitoring & User control | LED display |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Passive furling tail design |
Shutting Down Method | Manual & Automatic electromagnetism Braking |
Warranty | 2 years for generator and 1 year for other parts |
