Hummer 500W Wind Turbine For Household






Hummer 500W Wind Turbine For Household

Hummer 500W Wind Turbine For Household

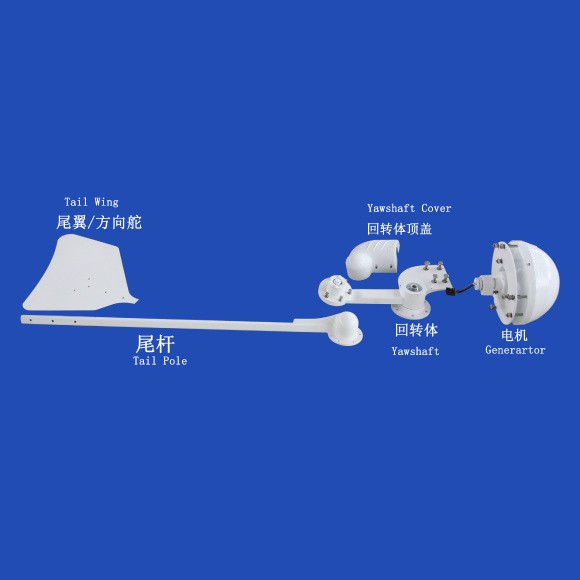

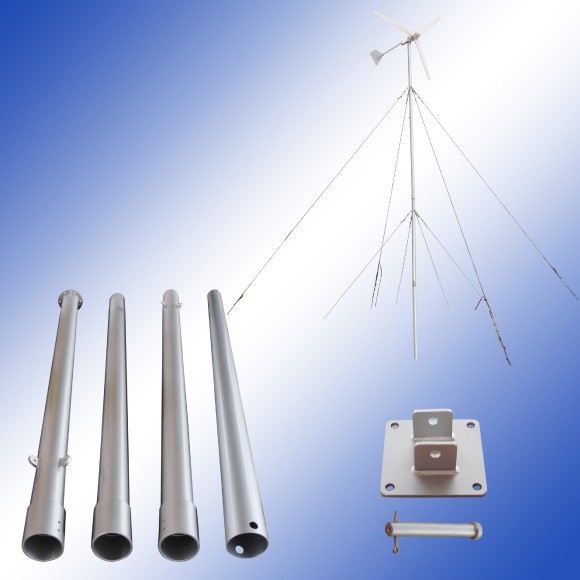

Hummer 500W Wind Turbine For Household Structure

Hummer 500W Wind Turbine For Household Structure

Hummer 500W Wind Turbine For Household Structure

Hummer manufactures and offers advanced 500W Wind Turbine specifically designed for

residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. Our products are third party certified and during the past 10 years, 500W Wind Turbine

For house have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on 500W Wind Turbine

For Household such as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300

Hummer 500W Wind Turbine For Household curve

Hummer 500W Wind Turbine For Household curve


H2.7-500W Wind Turbine For Household specifications

Configuration

3 Blades, Horizontal axis, upwind

Rotor Diameter

Ф2.7m

Rated Power

500W at 7m/s

Maximum Output Power

1 kW at 11m/s

Battery Bank Voltage

24 Vdc

System Output Voltage

110/220 Vac

Cut-in Wind Vpeed

3 m/s

Working Wind Speed

3-25 m/s

Survival Wind Speed

50 m/s

Generator Efficiency

>0.78

Wind Energy Utilizing Ratio

0.48 Cp

Alternator

Permanent magnet alternator, SCF technology

Alternator Weight (kg)

6.5 kg

Gearbox

None, Direct drive, front generator design

Blade Material

Fiberglass reinforced composite

Over Speed Regulation

Passive furling tail design

Shutting Down Method

Manual & Automatic electromagnetism Braking

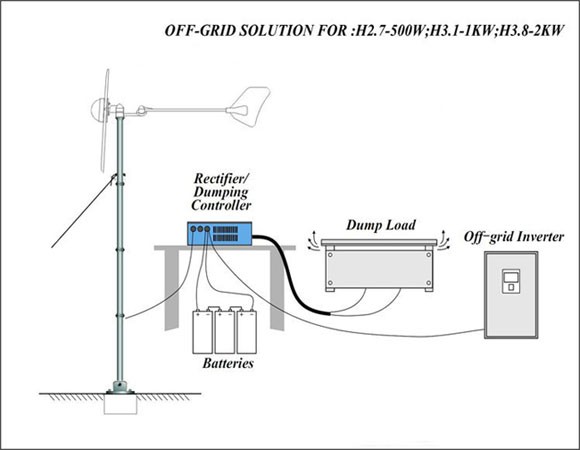

How 500W Wind Turbine For Household works

How 500W Wind Turbine For Household works
