Specifications:
| H2.7-500W Specifications | |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | Ф2.7 m / 8.9 feet |
| Swept Area | 5.73 m2 / 61.7 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 500W @ 11m/s / 24.6 mph |
| Maximum Output Power | 570W @ 20m/s / 44.7 mph |
| Battery Bank Voltage | 24 Vdc |
| System Output Voltage | 110/220 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph |
| Rated rotating rate | 600 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.0 mph |
| Survival Wind Speed | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 6.5 kg / 14.3 lbs |
| Generator Efficiency | >0.78 |
| Wind Energy Utilizing Ratio | 0.48 Cp |
| Energy monitoring & User control | LED display |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Passive furling tail design |
| Shutting Down Method | Manual & Automatic electromagnetism Braking |
| Warranty | 2 years for generator and 1 year for other parts |

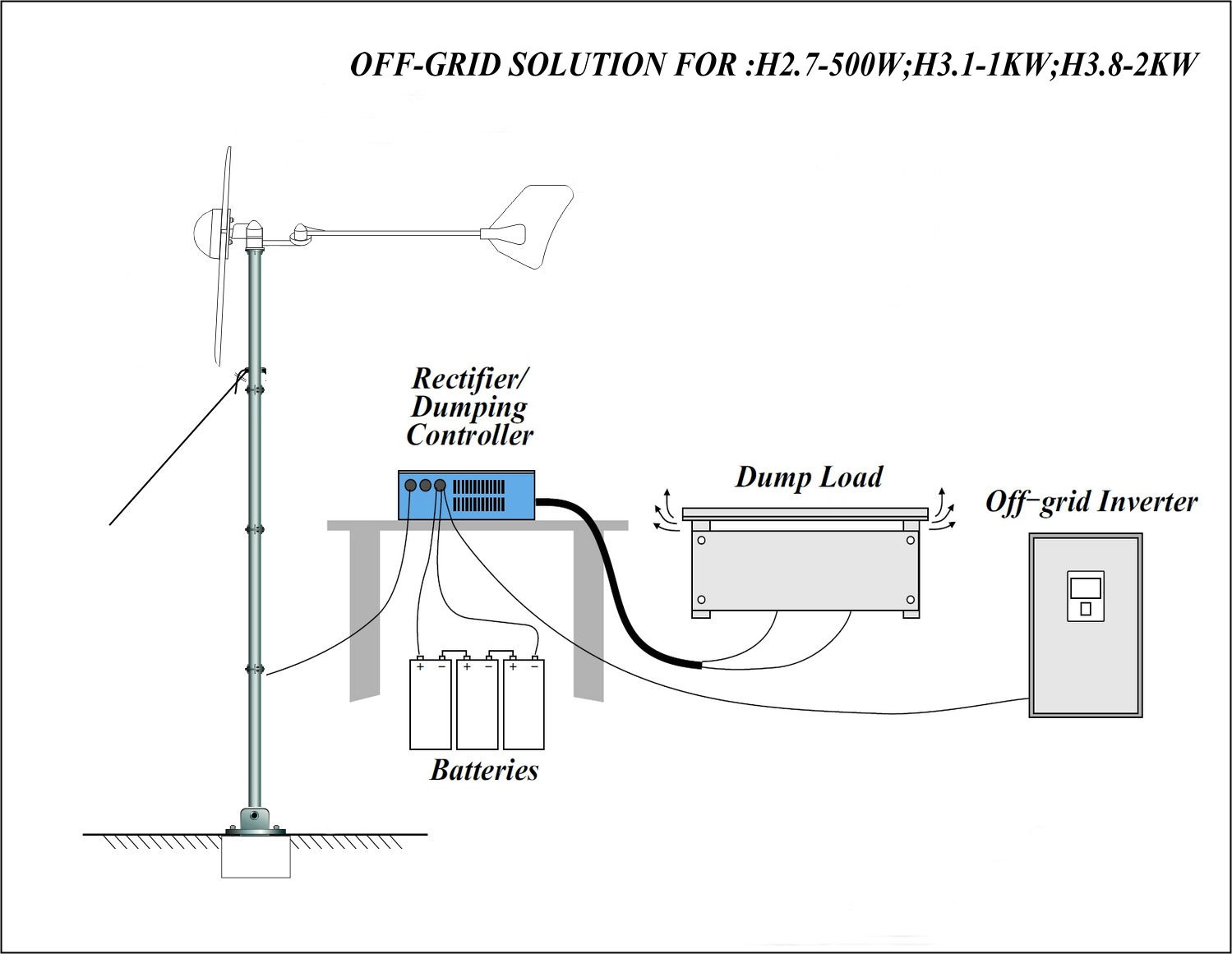

How Hummer 500w residential wind turbine works:
