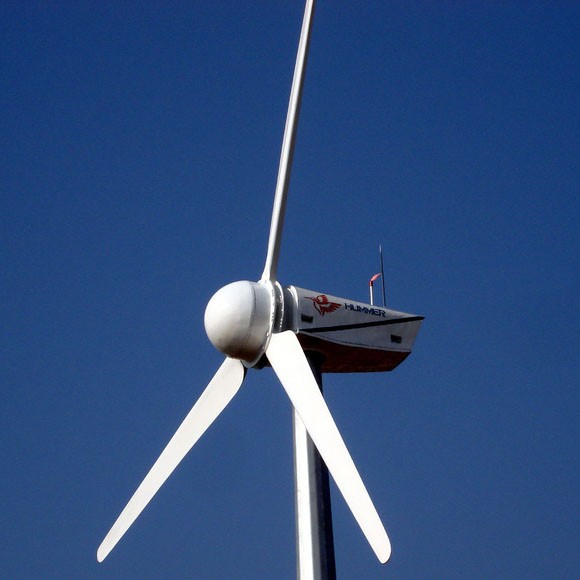

Hummer 50KW Home Wind Power

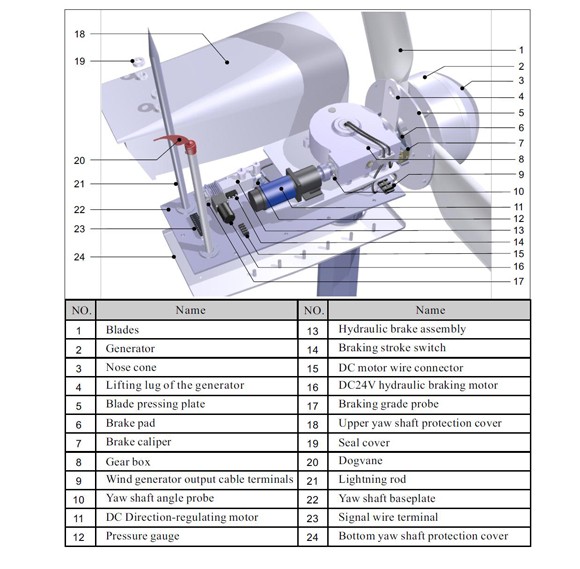

50KW Home Wind Power Structure
Hummer manufactures and offers advanced 50KW Home Wind Power specifically
designed for residential houses; farms; telecommunication stations; commercial wind
farms; water-pumping, etc. Our products are third party certified and during the past 10
years, Hummer 50KW Home Wind Power have been exported to 91 countries and areas,
such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.
For more information on 50KW Home Wind Power such as users manuals, data sheet,
PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300

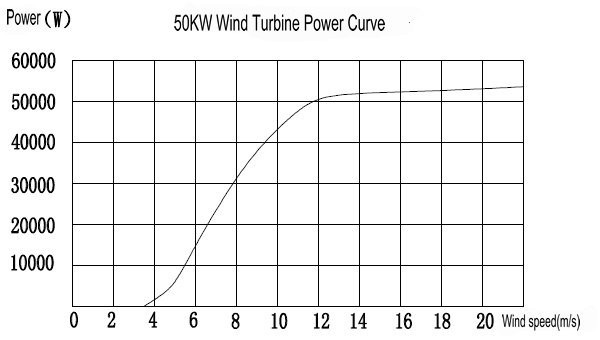

50KW Home Wind Power curve
| H12.0-50KW Home Wind Power Specifications | |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | Ф12.0 m / 39.4 ft |
| Swept Area | 113.10 m2 / 1217.4 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 50 kW @ 12m/s / 26.8 mph |
| Maximum Output Power | 54 kW @ 20m/s / 44.7 mph |
| Battery Bank Voltage | 400 Vdc |
| System Output Voltage | 380 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph |
| Rated rotating rate | 140 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.8 mph |
| Survival Wind Speed | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 1237 kg / 2727.1 lbs |
| Generator Efficiency | >0.92 |
| Wind Energy Utilizing Ratio | 0.42 Cp |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing & Hydraulic Braking |
| Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
| Warranty | 2 years for generator and 1 year for other parts |

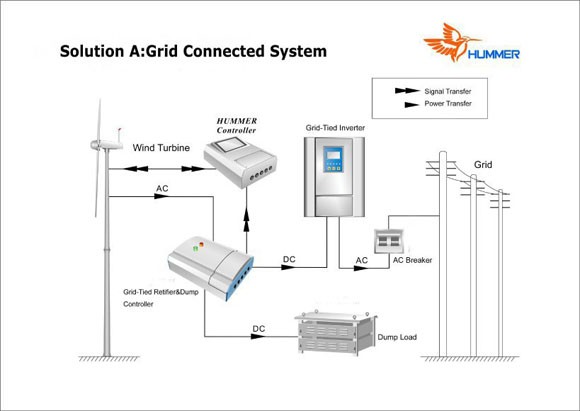

How 50KW Home Wind Power works
