Hummer 50KW Mini Wind Turbine






Hummer 50KW Mini Wind Turbine

Hummer 50KW Mini Wind Turbine

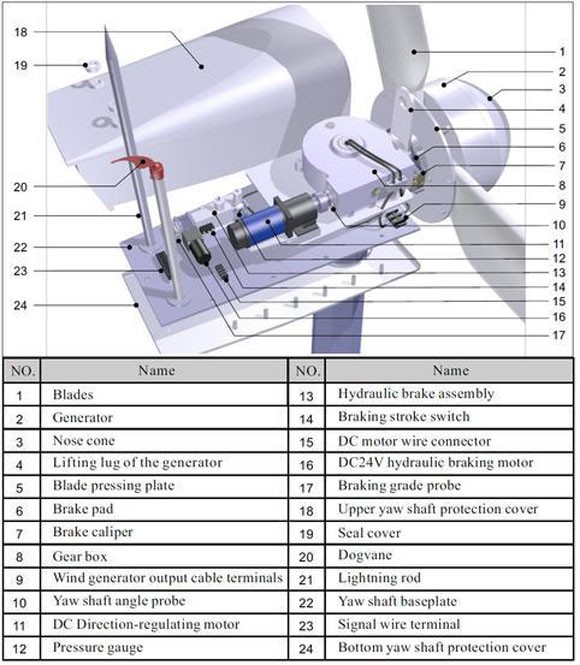

50KW Mini Wind Turbine Structure

50KW Mini Wind Turbine Structure

Hummer manufactures and offers advanced 50KW Mini Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Due to its advanced technologies, refined materials and unique design,

50kw wind turbine's wind energy utilization factor is as high as 0.42, while

generator efficiency is 0.92. Our products are third party certified and during the past 10

years, Hummer 50KW Mini Wind Turbine have been exported to 91 countries and areas,

such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.

For more information on 50KW Mini Wind Turbine such as users manuals, data sheet,

PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300

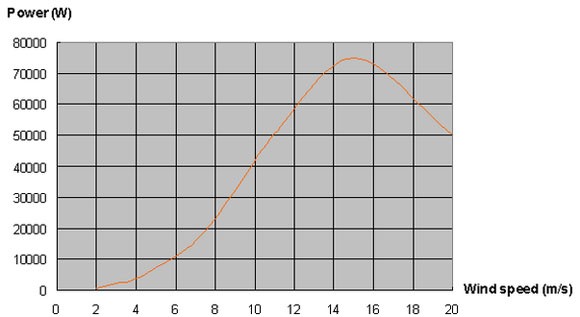

50KW Mini Wind Turbine curve

50KW Mini Wind Turbine curve

H12.0-50KW Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф12.0 m / 39.4 ft
Swept Area 113.10 m2 / 1217.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 50 kW @ 12m/s / 26.8 mph
Maximum Output Power 54 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 400 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 140 r/min
Working Wind Speed 3-25 m/s / 6.7-82.8  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 1237 kg / 2727.1 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts


How 50KW Mini Wind Turbine works

How 50KW Mini Wind Turbine works
