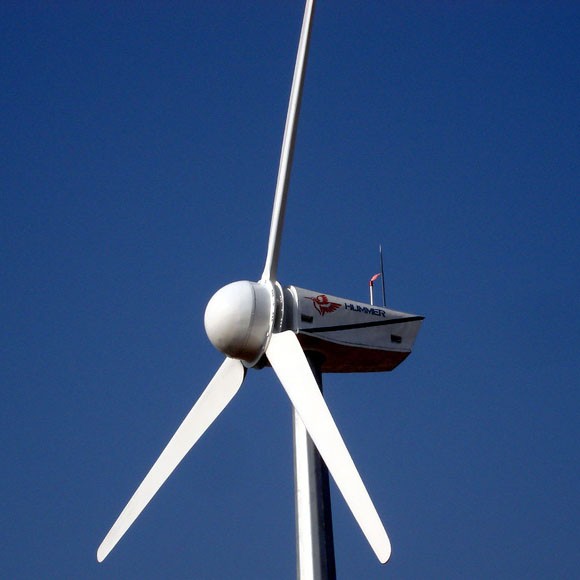

Hummer 50KW Roof Wind Generator

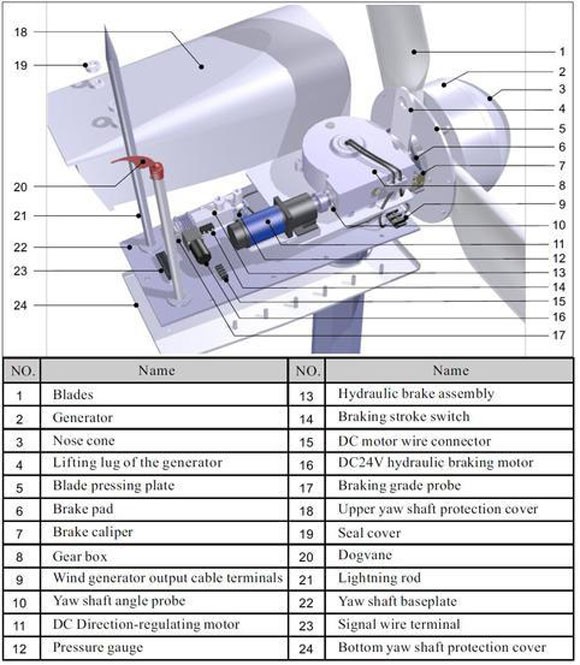

50KW Roof Wind Generator Structure
Hummer manufactures and offers advanced 50KW Roof Wind Generator specifically
designed for residential houses; farms; telecommunication stations; commercial wind farms;
water-pumping, etc. Due to its advanced technologies, refined materials and unique design,
50kw wind turbine's wind energy utilization factor is as high as 0.42, while
generator efficiency is 0.92. Our products are third party certified and during the past 10
years, Hummer 50KW Roof Wind Generator have been exported to 91 countries and areas,
such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.
For more information on 50KW Roof Wind Generator such as users manuals, data sheet,
PDF documents, certifications please email us sales@allwindturbine.com
or call 086 551 65314300

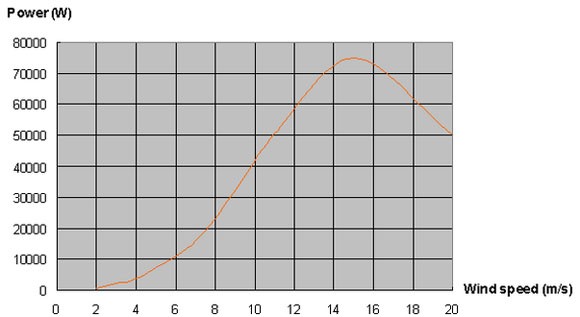

50KW Roof Wind Generator curve
H12.0-50KW Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф12.0 m / 39.4 ft |
Swept Area | 113.10 m2 / 1217.4 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 50 kW @ 12m/s / 26.8 mph |
Maximum Output Power | 54 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 400 Vdc |
System Output Voltage | 380 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 140 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.8 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 1237 kg / 2727.1 lbs |
Generator Efficiency | >0.92 |
Wind Energy Utilizing Ratio | 0.42 Cp |
Energy monitoring & User control | Siemens PLC controller with touch screen |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Auto Yawing & Hydraulic Braking |
Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
Warranty | 2 years for generator and 1 year for other parts |
Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
Warranty | 2 years for generator and 1 year for other parts |
How 50KW Roof Wind Generator works
