Hummer 50KW Wind Power Generator


Hummer 50KW Wind Power Generator

Hummer 50KW Wind Power Generator

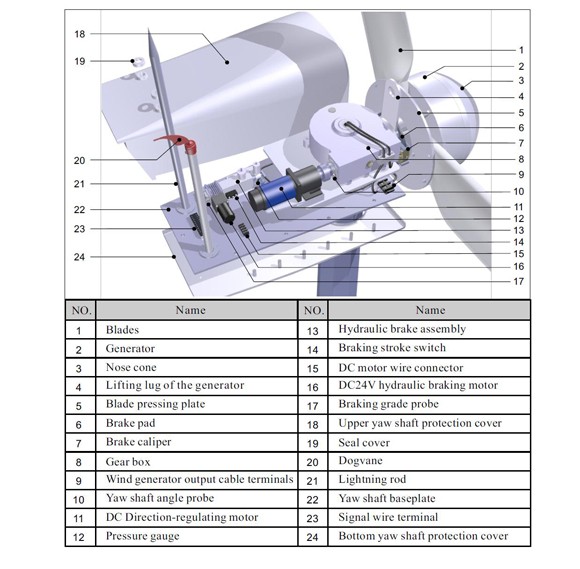

50KW Wind Power Generator Structure

50KW Wind Power Generator Structure

Hummer manufactures and offers advanced 50KW Home Power Generator specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

 water-pumping, etc. Our products are third party certified and during the past 10 years,

Hummer 50KW Home Power Generator have been exported to 91 countries and areas,

such as the USA, Canada, Australia, Germany, the UK, Italy, France, India, Spain etc.

For more information on 50KW Home Power Generator such as users manuals, data

sheet, PDF documents, certifications please email us

or call 086 551 65314300

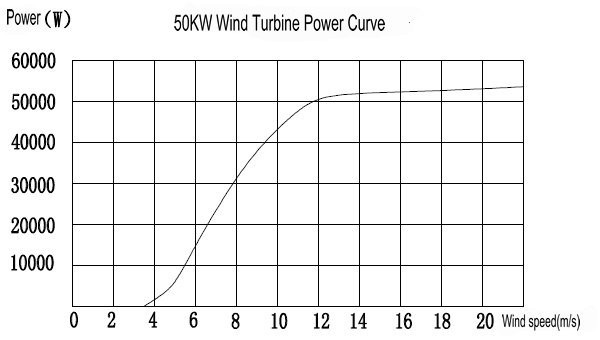

50KW Wind Power Generator curve

50KW Wind Power Generator curve


H12.0-50KW Wind Power Generator Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф12.0 m / 39.4 ft
Swept Area 113.10 m2 / 1217.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 50 kW @ 12m/s / 26.8 mph
Maximum Output Power 54 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 400 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 140 r/min
Working Wind Speed 3-25 m/s / 6.7-82.8  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 1237 kg / 2727.1 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

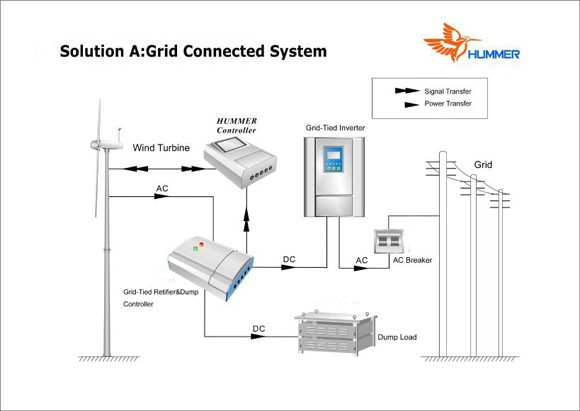

How 50KW Wind Power Generator works

How 50KW Wind Power Generator works
