Front Generator Wind Turbine

Detailed Product Description

Industrial grid-tied 3KW wind generator
1.CE proved+7patents
2.high efficiency+small size
3.NO MOQ+wholesale price

Industrial grid-tied 1KW wind generator



The Model Hummer  H3.1-1000W Wind Turbine Generator has the great advantages of high efficiency and low rated wind speed. It introduces several patented technologies and uses some special materials.



The off-grid controller adopts the integrated design which consists of the controlling, inverting and load-diverting parts. It fulfills the functions of charging and protection for over charging/discharging, over-loading and short circuit, also supplies a diversion load. The controller outputs sine wave and has a spare interface for solar energy. Without especial fixation, the controller for 1000W could be connected to the solar panel within 400W.

The on-grid controller can connect wind power to electrical grid.



The Yaw Shaft has the equipment of electric slip ring inside which can ensure the free running of generator without cable twisting.

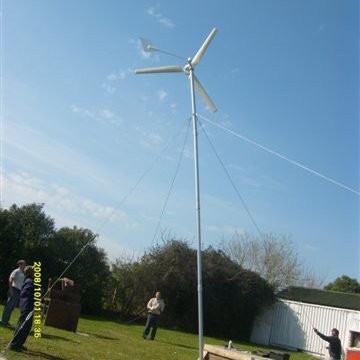

Due to the modularization-design, Model Hummer  H3.1-1000W Wind Turbine Generator is free for maintenance and easy for installation. It can be installed only by the manual work, without welding, concrete or cranes. Even a tyro can handle it easily and swiftly.

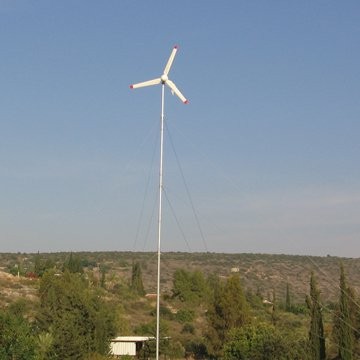

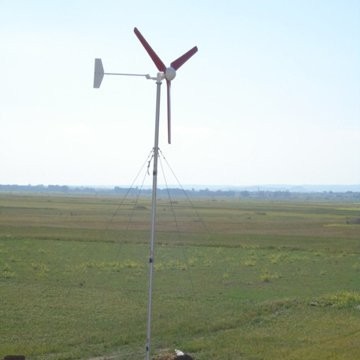

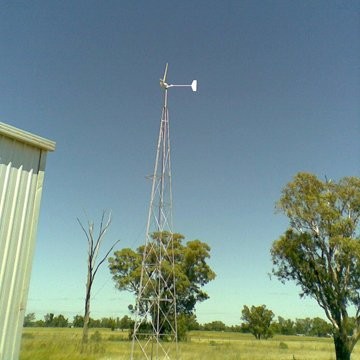

Application of Model Hummer  H3.1-1000W Wind Turbine Generator

It can drive air-condition (1 horsepower), pump or other electrical appliances (≤1KW).

Well used in:

Housing

Telecommunications Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station



  Technical parameters

H3.1-1000W Industrial grid-tied 1kw wind generator in Brunei Specifications
Configuration	3 Blades, Horizontal axis, Upwind
Rotor Diameter	Ф3.1 m / 10.2 ft
Swept Area	7.55 m2 / 81.3 ft2
Direction of Rotation	Clockwise looking upwind
Blade Material	Fiberglass reinforced composite
Rated Power	1 kW @ 10m/s / 22.4 mph
Maximum Output Power	1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage	60 Vdc
System Output Voltage	110/220 Vac
Cut-in Wind Speed	3 m/s / 6.7 mph
Rated rotating rate	500 r/min
Working Wind Speed	3-25 m/s / 6.7-82.1  mph
Survival Wind Speed	50 m/s / 164 mph
Alternator	Permanent magnet alternator, SCF technology
Alternator Weight	15 kg / 33.1 lbs
Generator Efficiency	>0.80
Wind Energy Utilizing Ratio	0.45 Cp
Energy monitoring & User control	LED display
Gearbox	None, Direct drive with front generator design
Over Speed Regulation	Passive furling tail design
Shutting Down Method	Manual & Automatic electromagnetism Braking
Warranty	2 years for generator and 1 year for other parts
