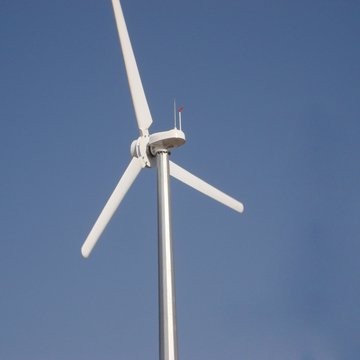

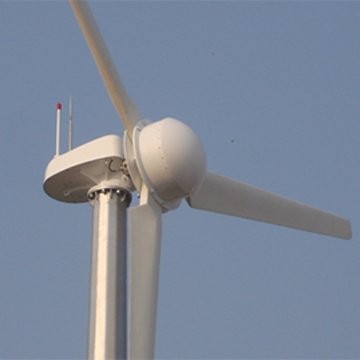

Micro Wind Turbine



  • Products Visitors:6618
  • Product Name:Micro Wind Turbine
  • Package:19.346 CBM, 10 Packages
  • Size:18m free standing tower
  • Model:H10.0-30kw



Detailed Product Description


Micro Wind Turbine

1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professtional factory

1 Micro Wind Turbine

Smart Control

H10.0-30000W home wind power generator is controlled by a comprehensive smart system.



This smart system is able to automatically seek wind direction and constantly monitor :generator

working status,rotation speed,generator temperature ,wind speed and direction etc .All data will

be transmitted to control center .

When abnormal situation takes place ,our control center will instruct wind power generator to deflect from wind direction .After problem is released wind turbinewill turn to face the

wind direction again and resume generation .



H10.0-30000W home wind power generator, both off grid and grid tied are available.



Application of 30000W home wind power generator

It can drive air condition ( ≤30 horsepower),  10kw  water pump  or other  resistive   appliances  (≤30KW).

Well used in:

Housing and factory and farm

Telecommunication Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

 Water-pumping Station

shipping



2. Micro Wind Turbine pmg curve

 Micro Wind Turbine pmg curve



3.Techonology parameter of  Micro Wind Turbine price

H10.0-30KW Micro Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф10.0 m / 32.8 ft
Swept Area 78.54 m2 / 845.4 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 30 kW @ 11m/s / 24.6 mph
Maximum Output Power 33 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 360 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 160 r/min
Working Wind Speed 3-25 m/s / 6.7-82.7  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 824 kg / 1816.6 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.42 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

4.Structural pictures of  Micro Wind Turbine

1)Generator


2)nose cone made of reinforced aluminum alloy, antisepsis casting nose cone.jpg

3)yaw shaft with the power supply and gearbox inside, controlling the operation of wind generator

yaw shaft.jpg

4)RotorBlade:with airfoil structure;made of glass reinforced plastic with fiberglass wind turbine blade






5) Hydraulic Tower

hydraulic brake.jpg





5.Solutions of Micro Wind Turbine

Grid Connected System

Off Grid System



6.  maglev wind power generator Control System



Hummer wind turbine  5000w__6__0002.jpg





7.Site Choosing of  Micro Wind Turbinesite choose.jpg



8.Certifications
