Residential Wind Generator


Residential Wind Generator Product Description

Residential Wind Generator

1.CE proved+7 patents
2.high efficiency
3.NO MOQ+wholesale price
4.professional factory

Residential Wind Generator

Hummer 2kw mini wind generator equipment has the following features :

A.The hummer wind power generator have low power consumption ,the structure is compact,friction ratio is low ,low in power wastage with 20% saved than the traditonal one.

B. Thanks to the light and small structure ,and the rotating speed can even be over 2 times than the rated rotating speed ,with the result of soundless ,safe and reliable .

C. Swift in start up ,2.0m/s 100% working

D. Swift in heating dispersion ,the generator is install installed inside the nose cone,which is favorable for het dispersion .

E. Swift in charing and power output

F. Reliable protection for over charging/Discharing /current /voltage/short circuit  and over speed /temperature etc .

G. Freely maintenance

Residential Wind Generator Technical Data

H3.8-2000W Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation  Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control  LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

H3.8-2KW (53)

      solar hybrid system 2kw small permanent magnet generator

 By a net weight of 25kg, H3.8-2kw small permanent magnet generator is as high as 0.45 while generator efficiency is higher than 0.8. It is capable of meeting a family's basic power needs.

H3.8-2000W's yaw shaft is made of refined steel, tail pole is made of strong manganese steel, and tail wing is made of steel. These refined and high quality materials ensure reliable deflection for protection.16m is the ideal distance between two micro turbines .

Application of Model H3.8-2000W small permanent magnet generator : it can drive air-condition (2 horsepower), 800W water pump or other electrical appliances (≤2KW).

Solar hybrid system 2kw generator is well used in:

Housing,Telecommunication, StationTV Transfer Station,Monitoring Station (military, hydrology, observatory) and  Water-pumping Station

Residential Wind Generator curve

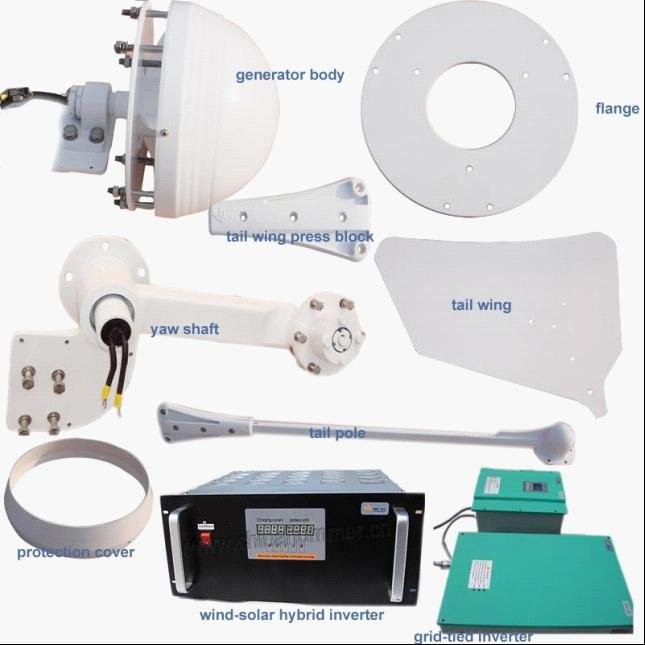

Structure of Residential Wind Generator
