Residential Wind Turbine






Residential Wind Turbine Product Description


Residential Wind Turbine

1.CE proved+7patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

Residential Wind Turbine



H3.1-1000W Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

Hummer 1000w wind generator equipped with wind-solar hybrid

sine wave controller system . Our controller system are three-in -one

design with the functions of charging ,inverting and unloading .



Residential Wind Turbine Technical Data of our 1000w wind generator is as bellowing :



Residential Wind Turbine

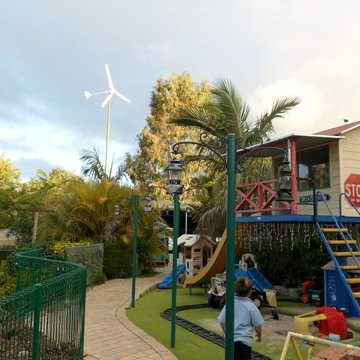

is well used in Housing ,ships ,telecommunications station ,TV transfer station ,Monitoring station (military ,hydrology ,observatory )water-pumping etc .




And it can connected within 500w solar panel with the help of hummer solar-wind hybrid controlling system .



For more details , pls feel free to contact with us .
