Road Type |
wind generator (W) |
Solar Panel Fits |
LED light |
Brightness | illuminance | ingress protection | |||
|
Solar(W) for Single LED Lamp |
Solar(W) for Double LED Lamp |
Power (W) |
average luminance Lav (Cd/㎡) | uniformity Lmin/Lav |
average illuminance Eav(Lx) |
Uniformity Emin/Eav | |||
| Sub-Primary Road | 400 | 60-80 | 120-150 | 30-45 | 0.5 | 0.35 | 8 | 0.35 | IP65 |

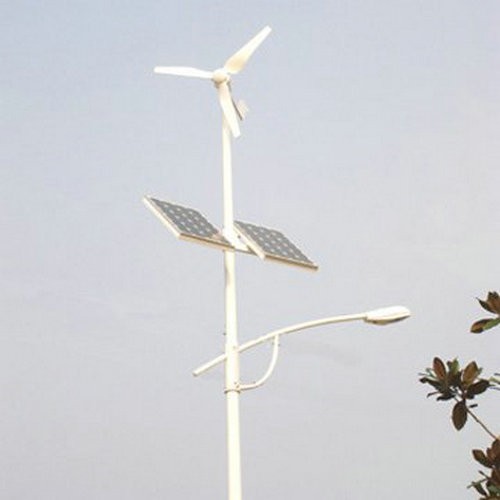

Wind Solar Hybrid Street Light
Main technical data
| Rated power (W) | 400 |
| Maximum output power (W) | 600 |
| Charging voltage (V) | DC 12 |
| Blade quantity | 3 |
| Blade material | Nylon |
| Blade diameter (ft.) | 4 (1.25m) |
| Start-up wind speed (mph) | 6 (2.5m/s) |
| Rated wind speed (mph) | 25 (11.0m/s) |
| Rated rotating rate (r/min) | 800 |
| Wind energy utilizing ratio (Cp) | 0.4 |
| Generator output | Frequency conversion AC |
| Output AC frequency (Hz) | 0~300 |
| Rated charging current (A) | 33.3 |
| The maximum charging current (in a short time) (A) | 45 |
| Generator efficiency | >0.8 |
| Tower diameter (in.) | ø2.6 (ø65mm) |
| Tower height (ft.) | 30 (9m) |
| Generator weight (lb) | 12 (5.5kg) |
| Suggested Battery (Ah) | 100/120 |
