B. Quality parts use SKF bearings and Siemens PLC control system and so on
C. Sine wave output, drive 1200w pump, 3kw appliances etc.
D. Connect with 900w solar panels to make up the wind solar hybrid system.
E. Generate 3000W power at 10m/s
F. High cost performance.
2.Parameters:

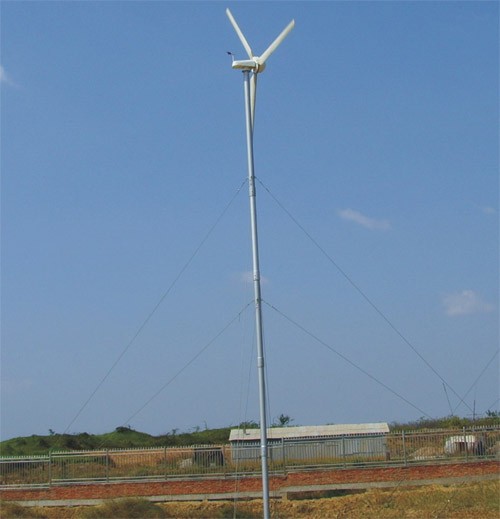

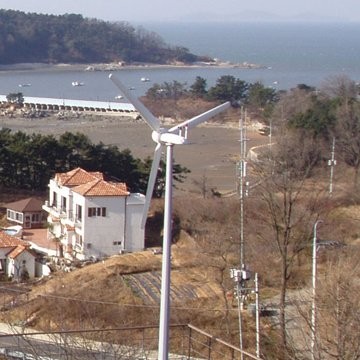

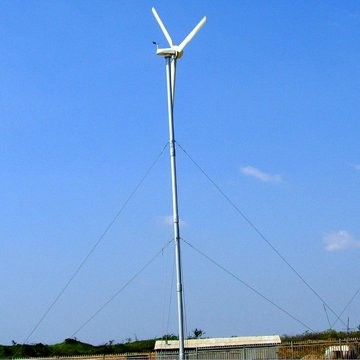

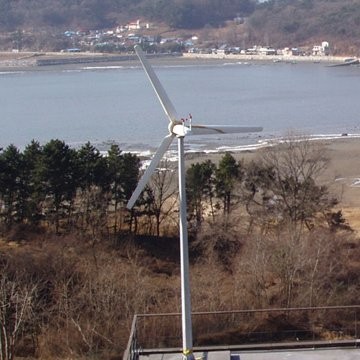

H4.6-3KW Wind Turbine Generator Specifications | |
Configuration | 3 Blades, Horizontal axis, Upwind |
Rotor Diameter | Ф4.9 m / 16.1 ft |
Swept Area | 18.86 m2 / 203.0 ft2 |
Direction of Rotation | Clockwise looking upwind |
Blade Material | Fiberglass reinforced composite |
Rated Power | 3 kW @ 10m/s / 22.4 mph |
Maximum Output Power | 3.3 kW @ 20m/s / 44.7 mph |
Battery Bank Voltage | 180 Vdc |
System Output Voltage | 110/220 Vac |
Cut-in Wind Speed | 3 m/s / 6.7 mph |
Rated rotating rate | 265 r/min |
Working Wind Speed | 3-25 m/s / 6.7-82.3 mph |
Survival Wind Speed | 50 m/s / 164 mph |
Alternator | Permanent magnet alternator, SCF technology |
Alternator Weight | 72 kg / 158.7 lbs |
Generator Efficiency | >0.80 |
Wind Energy Utilizing Ratio | 0.40 Cp |
Energy monitoring & User control | Siemens PLC controller with touch screen |
Gearbox | None, Direct drive with front generator design |
Over Speed Regulation | Auto Yawing |
Shutting Down Method | Manual & Automatic electromagnetism Braking |
Warranty | 2 years for generator and 1 year for other parts |
3.Curve
