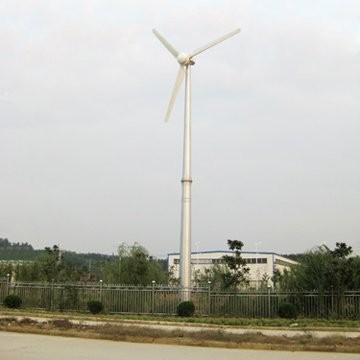

hummer 10.0-30KW turbine






Detailed Product Description


2011 top qualtiy 30kw wind turbine
1.high output+small size
2.CE+Reliable safety
3.low noise+patented teches
4.hot sale



2011  top quality 30kw wind turbine



Smart Control

H10.0-30000W home wind generator is controlled by a comprehensive smart system.

Through our years of monitoring on wind turbine operation ,we successfully develop an automatic control system for small and medium scaled wind turbines.



This smart system is able to automatically seek wind direction and constantly monitor :generator working status,rotation speed,generator temperature ,wind speed and direction etc .All data will be transmitted to control center .

When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction .After problem is released wind turbinewill turn to face the wind direction again and resume generation .



H10.0-30000W home wind generator, both off grid and grid tied are available.



Application of 30000W home wind generator

It can drive air condition ( <=30 horsepower),  10kw  water pump  or other  resistive   appliances  (<=30KW).

Well used in:

Housing and factory and farm

Telecommunication Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

 Water-pumping Station

shipping



Main technical parameter

Rated power (W) 30000
Maximum output power (W) 45000
Charging voltage (V) DC 360
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter (ft.) 33 (10.0m)
Start-up wind speed (mph) 6    (2.5m/s)
Rated wind speed (mph) 25  (11.0m/s)
Rated rotating rate (r/min) 160
Wind energy utilizing ratio (Cp) 0.42
Generator output Frequency conversion AC
Rated charging current (A) 83
The maximum charging current (in a short time ) (A) 125
Output AC frequency (Hz) 0~400
Generator efficiency >0.92
Free standing tower diameter (in.) 47.2*18.7  (1200*475mm)
Tower height (ft.) 59  (18m)
The weight of generator (lb) 1764  (800kg)
Suggested Battery (Ah) 600/1000
