small wind generator






Product Information

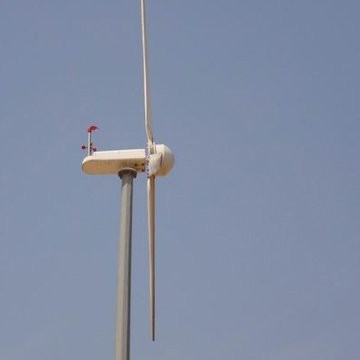

Hummer H3.8-2000W is a typical HUMMER small wind turbine below 3KW. The generator which is able to be placed inside the nose cone gives you a clear look how small hummer generator is. Though very small, compared with traditional turbine, its stronger power-making ability has won Hummer's reputation in the world wide market. Refined material, strong structure and mature techniques ensure its toughness in wild field.

By a net weight of 25kg, H3.8-2000W 's wind energy utilization ratio is as high as 0.45 while generator efficiency is >0.8. It is capable of meeting a family's basic power need.

H3.8-2000W's yaw shaft is made of refined steel, tail pole is made of strong manganese steel, and tail wing is made of steel. These refined and high quality materials ensure reliable deflection for protection.

16m is the ideal distance between two 2kw wind turbines.

Application of Model H3.8-2000W wind turbine
It can drive air-condition (2 horsepower), 800W water pump or other electrical appliances (≤2KW).
Well used in:
● Housing
● Telecommunication Station
● TV Transfer Station
● Monitoring Station (military, hydrology, observatory)
● Water-pumping Station

Main technical data
Rated power (W)
2000
Maximum output power (W)
3200
Charging voltage (V)
DC 120
Blade quantity
3
Rotor blade material
GRP
Rotor blade diameter (ft.)
12  (3.8m)
Start-up wind speed (mph)
7    (3.0m/s)
Rated wind speed (mph)
20  (9.0m/s)
Rated rotating rate (r/min)
450
Wind energy utilizing ratio (Cp)
0.45
Generator output
Frequency conversion AC
Rated charging current (A)
16.7
The maximum charging current (in a short time )(A)
28
Output AC frequency (Hz)
0~370
Generator efficiency
>0.8
Tower diameter (in.)
Ф4.5*78.7*0.2 (Ф114*2000*4 mm) (5pcs)
Tower height (ft.)
33  (10m)
The weight of generator (lb)
55  (25kg)
Suggested Battery (Ah)
150/200
