wind generator






Detailed Product Description


wind energy turbine
1.CE proved+7patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

 wind energy turbine



Featurers:

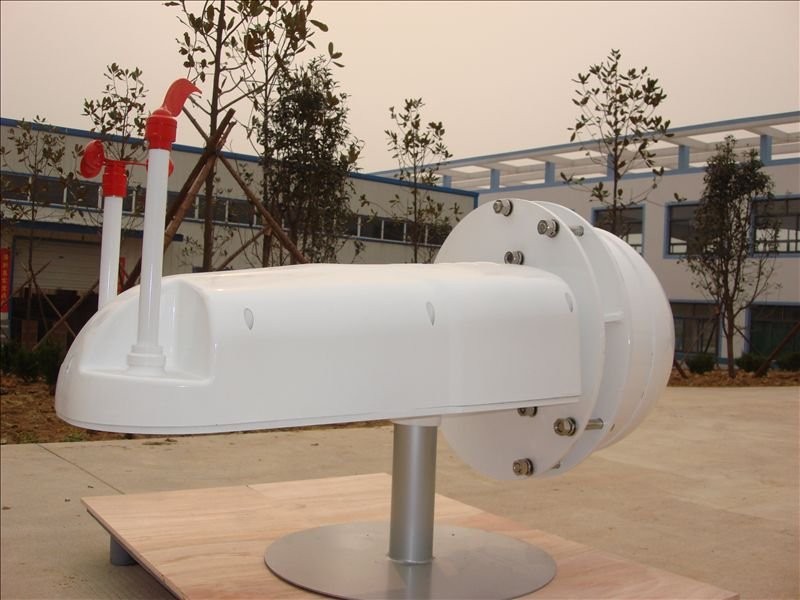

Small & light structure ,the generator is installed inside the nose cone which can help for heat dispersion and reduce the wind resistance .

Blades designed according structure and aircraft technology

Generator built with permanent magnetic materials which have 4 patented technologies

Advanced controlling system ,can be connected to the local grid directly or for off-grid usage .

Special anti-corrosion treatment of the parts

Specification and performance of 10kw wind power turbine :



Rated power(W)

10000

Maximum output powerW

15000

Charging voltage (V)

DC 240

Blade quantity

3

Rotor blade material

GRP

Rotor blade diameterm

8.0

Start-up wind speed (m/s)

3.0

Rated wind speed (m/s)

10.0

Rated rotating rate (r/min)

200

Wind energy utilizing ratio (Cp)

0.4

Generator output

Single-phase

frequency conversion AC

Rated charging current (A)

41.7

The maximum charging current (in a short time )(A)

65

Output AC frequency (Hz)

0~280

Generator efficiency

>0.8

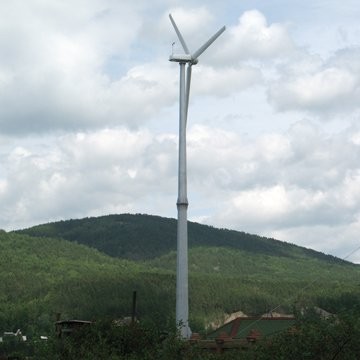

Free standing tower diameter(mm)

900*630*15000 (2pcs)

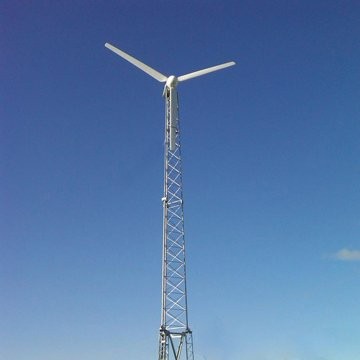

Guy tower diameter(mm)

1050*750 *16000(2pcs)

Tower height(m)

15

The weight of generator(kg)

287

Battery 12V 600Ah/800Ah

20pcs
