Front Generator Wind Turbine

Detailed Product Description

small wind turbine
1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professtional factory



small wind turbine



The Model Hummer  H3.1-1000W Small Wind Turbine has the great advantages of high efficiency and low rated wind speed. It introduces several patented technologies and uses some special materials.



The off-grid controller adopts the integrated design which consists of the controlling, inverting and load-diverting parts.



It fulfills the functions of charging and protection for over charging/discharging, over-loading and short circuit, also supplies a diversion load.



The controller outputs sine wave and has a spare interface for solar energy. Without especial fixation, the controller for 1000W could be connected to the solar panel within 400W.



The Yaw Shaft has the equipment of electric slip ring inside which can ensure the free running of generator without cable twisting.



Due to the modularization-design, Model Hummer  H3.1-1000W Small Wind Turbine is free for maintenance and easy for installation.

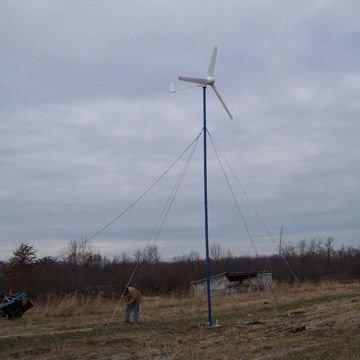

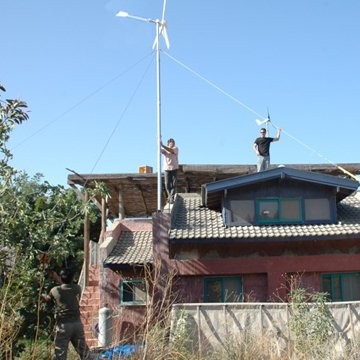

It can be installed only by the manual work, without welding, concrete or cranes. Even a tyro can handle it easily and swiftly.



Application of Model Hummer  H3.1-1000W Small Wind Turbine

It can drive air-condition (1 horsepower), pump or other electrical appliances (≤1KW).

Well used in:

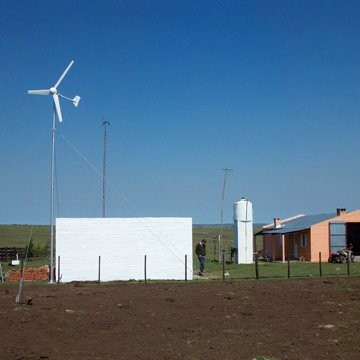

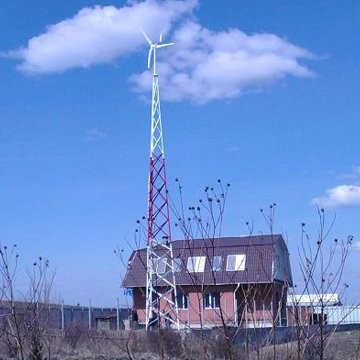

Housing

Telecommunications Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station



  Technical parameters

Rated power (W)	1000
Maximum output power (W)	2000
Charging voltage(V)	DC 60
Blade quantity	3
Rotor blade material	GRP
Rotor blade diameter (ft.)	10  (3.1m)
Start-up wind speed (mph)	7    (3.0m/s)
Rated wind speed (mph)	20  (9.0m/s)
Rated rotating rate (r/min)	500
Wind energy utilizing ratio (Cp)	0.45
Generator output	Frequency conversion AC
Output AC frequency (Hz)	0~400
Rated charging current (A)	16.7
The maximum charging current (in a short time) (A)	30
Generator efficiency	>0.8
Tower diameter (in.)	3.5*78.7*0.1  (89*2000*3.5 mm) (4pcs)
Tower height (ft.)	26  (8m)
Weight of generator (lb)	33  (15kg)
Suggested Battery (Ah)	120/150
