H19.2-100KW Wind Turbine



  • Products Visitors:7713
  • Product Name:H19.2-100KW Wind Turbine
  • Size:18m hydraulic tower
  • Model:H19.2-100KW
  • Package:XX CBM, XX Packages



H19.2-100KW Wind Turbine

H19.2-100KW Wind Turbine

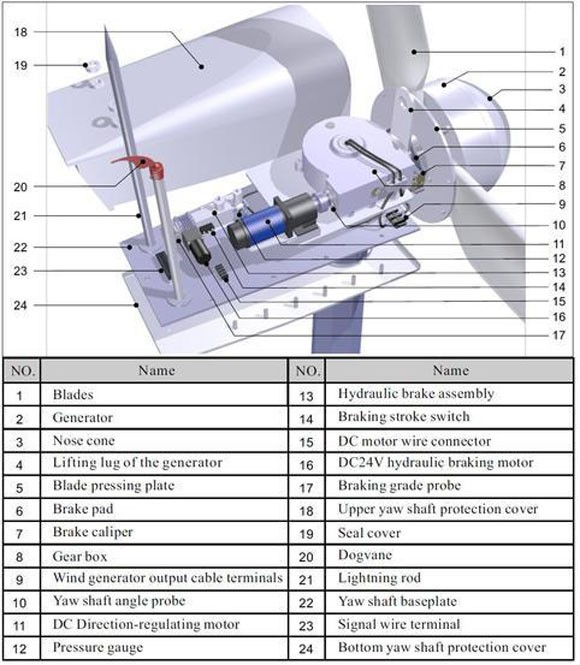

H19.2-100KW Wind Turbine Structure

H19.2-100KW Wind Turbine Structure

Hummer manufactures and offers advanced H19.2-100KW Wind Turbine specifically

designed for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. Hummer 100KW wind turbine also adopting generator prepositive design

without gears. Higher Wind energy utilizing ratio.SCF supercritical geenrator technology with

NSK bearings ensure a long running life.

H19.2-100KW Wind Turbine curve

H19.2-100KW Wind Turbine curve

H20.8-100KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф20.8 m / 68.2 ft
Swept Area 339.80 m2 / 3657.6 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 100 kW @ 12m/s / 26.8 mph
Maximum Output Power 106 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 460 Vdc
System Output Voltage 380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 100 r/min
Working Wind Speed 3-25 m/s / 6.7-82.10  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 2196 kg / 4620.9 lbs
Generator Efficiency >0.92
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing & Hydraulic Braking
Shutting Down Method Manual & Automatic electromagnetism Braking & Hydraulic Braking
Warranty 2 years for generator and 1 year for other parts

Solutions In H19.2-100KW Wind Turbine

-H19.2-100KW Off Grid Wind Turbine
-H19.2-100KW Grid Tied Wind Turbine

Our products are third party certified and during the past 10 years, Hummer Wind Turbine

Generator have been exported to 91 countries and areas, such as the USA, Canada,

Australia, Germany, the UK, Italy, France, India, Spain etc. For more information on

 100KW Wind Turbine such as users manuals, data sheet, PDF documents, certifications

please email us sales@allwindturbine.com or call 086 551 65314300
