H2.7-500W Wind Turbine



  • Products Visitors:3525
  • Product Name:H2.7-500W Wind Turbine
  • Package:0.283 CBM, 3 Packages
  • Size:2.7m wind blades, 6m guyed tower
  • Model:H2.7-500W

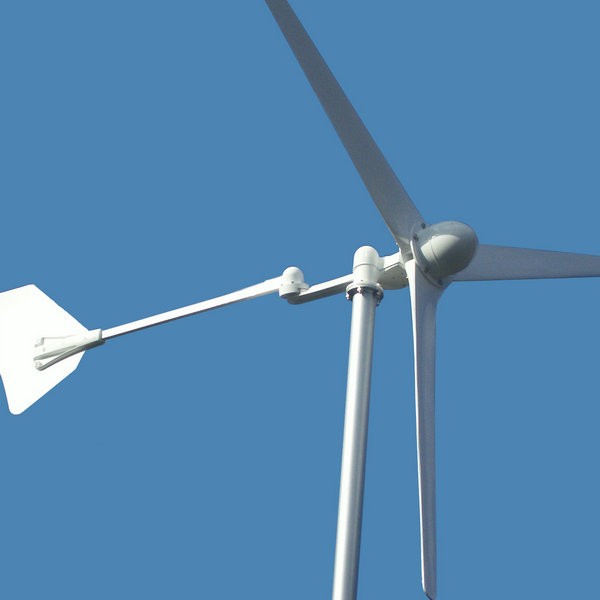

H2.7-500W Wind Turbine

H2.7-500W Wind Turbine

H2.7-500W Wind Turbine Structure

H2.7-500W Wind Turbine Structure

H2.7-500W Wind Turbine Structure

Hummer manufactures and offers advanced H2.7-500W Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms;

water-pumping, etc. The motor which adopts SCF technology only 6.5kg. It is easy for

users to install and operate.You can install and operate it with the help of users' manual.

Hummer patent furling tail design protect the 500w system in strong wind and continues

to generate at largest of the wind speeds.

H2.7-500W Wind Turbine curve

H2.7-500W Wind Turbine curve



H2.7-500W Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф2.7 m / 8.9 feet
Swept Area 5.73 m2 / 61.7 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 500W @ 11m/s / 24.6 mph
Maximum Output Power 570W @  20m/s / 44.7 mph
Battery Bank Voltage 24 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 600 r/min
Working Wind Speed 3-25 m/s / 6.7-82.0  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 6.5 kg / 14.3 lbs
Generator Efficiency >0.78
Wind Energy Utilizing Ratio 0.48 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

Solutions in H2.7-500W Wind Turbine

-H2.7-500W Off Grid Wind Turbine
-H2.7-500W All in One Wind Turbine
-H2.7-500W Wind Solar Hybrid Wind Turbine
Our products are third party certified and during the past 10 years, H2.7-500W Wind Turbine have

been exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK,

Italy, France, India, Spain etc. For more information on H2.7-500W Wind Turbine such as users

manuals, data sheet, PDF documents, certifications please email us sales@allwindturbine.com

or call 086 551 65314300
