H6.4-5KW Wind Turbine



  • Products Visitors:3897
  • Product Name:H6.4-5KW Wind Turbine
  • Package:3.119 CBM, 9 Packages
  • Size:12m free standing tower
  • Model:H6.4-5KW

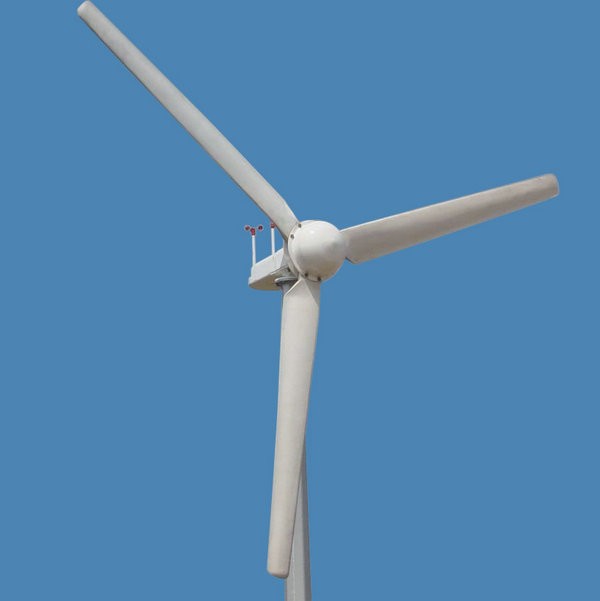

H6.4-5KW Wind Turbine

H6.4-5KW Wind Turbine

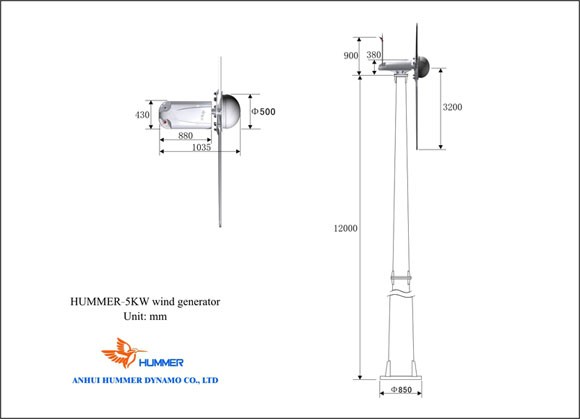

H6.4-5KW Wind Turbine Structure

H6.4-5KW Wind Turbine Structure

H6.4-5KW Wind Turbine Structure

Hummer manufactures and offers advanced H6.4-5KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. It adopting patent SCF supercritical technology and two SKF bearings.Siemens PLC controller

with touch screen, which is capable of quick reaction to wind signal.Optional off grid and grid tied

system. Single phase inverter and three phase inverter meet your various applications.

H6.4-5KW Wind Turbine curve

H6.4-5KW Wind Turbine curve

H6.4-5KW Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф6.4 m / 20.1 ft
Swept Area 32.17 m2 / 346.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 5 kW @ 12m/s / 26.8 mph
Maximum Output Power 5.6 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 240 Vdc
System Output Voltage 110/220/380 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 240 r/min
Working Wind Speed 3-25 m/s / 6.7-82.4  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 147 kg / 324.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.40 Cp
Energy monitoring & User control Siemens PLC controller with touch screen
Gearbox None, Direct drive with front generator design
Over Speed Regulation Auto Yawing
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

Solution In H6.4-5KW Wind Turbine

-H6.4-5KW Off Grid Wind Turbine
-H6.4-5KW Grid Tied Wind Turbine
-H6.4-5KW Wind Solar Hybrid System
-H6.4-5KW Off Grid 48V Wind Turbine
-H6.4-5KW Wind Solar Diesel Hybrid System
Our products are third party certified and during the past 10 years, Hummer Wind Generator have been

exported to 91 countries and areas, such as the USA, Canada, Australia, Germany, the UK, Italy, France,

India, Spain etc. For more information on H6.4-5KW Wind Turbine such as users manuals, data sheet,

PDF documents, certifications please email us sales@allwindturbine.com or call 086 551 65314300
