H3.1-1KW Wind Turbine



  • Products Visitors:2534
  • Product Name:H3.1-1KW Wind Turbine
  • Package:0.516 CBM, 4 Packages
  • Size:3.1m wind blades, 8m guyed tower
  • Model:H3.1-1KW

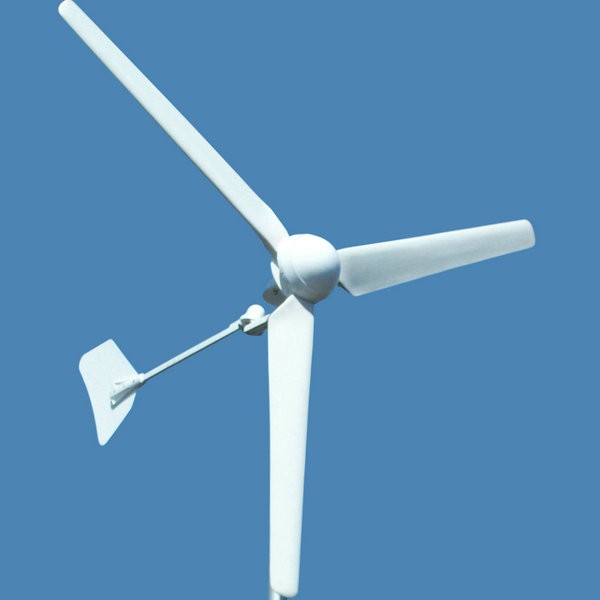

H3.1-1KW Wind Turbine

H3.1-1KW Wind Turbine

Hummer manufactures and offers advanced H3.1-1KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc.It adopts SCF supercritical generator technology owning seven patents and its special tail

furling is designed against strong wind. Featured with light in weight,small in volume, efficient

in electricity production, over 0.8 generator conversion efficiency, the turbine adopts 2 SKF

bearings making the noise index much lower than traditional ones.

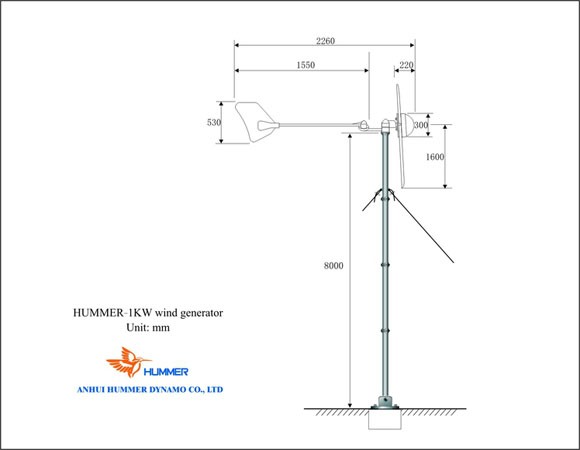

H3.1-1KW Wind Turbine Structure

H3.1-1KW Wind Turbine Structure

H3.1-1KW Wind Turbine Curve

H3.1-1KW Wind Turbine Curve



H3.1-1000W Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.1 m / 10.2 ft
Swept Area 7.55 m2 / 81.3 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 1 kW @ 10m/s / 22.4 mph
Maximum Output Power 1.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 60 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 500 r/min
Working Wind Speed 3-25 m/s / 6.7-82.1  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 15 kg / 33.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

Solutions in H3.1-1KW Wind Turbine

-H3.1-1KW Off Grid Wind Turbine
-H3.1-1KW Grid Tied Wind Turbine
-H3.1-1KW All In One Wind Turbine
-H3.1-1KW Off Grid 48V Wind Turbine
-H3.1-1KW Wind Solar Hybrid Wind Turbine
-H3.1-1KW Wind Solar Diesel Hybrid Wind Turbine
Our products are third party certified and during the past 10 years, H3.1-1KW Wind Turbine

have been exported to 91 countries and areas, such as the USA, Canada, Australia,

Germany, the UK, Italy, France, India, Spain etc. For more information on H3.1-1KW Wind

Turbine such as users manuals, data sheet, PDF documents, certifications please email us

sales@allwindturbine.com or call 086 551 65314300
