H3.8-2KW Wind Turbine



  • Products Visitors:2551
  • Product Name:H3.8-2KW Wind Turbine
  • Package:0.871 CBM, 7 Packages
  • Size:3.8m wind blades, 10m guyed tower
  • Model:H3.8-2KW

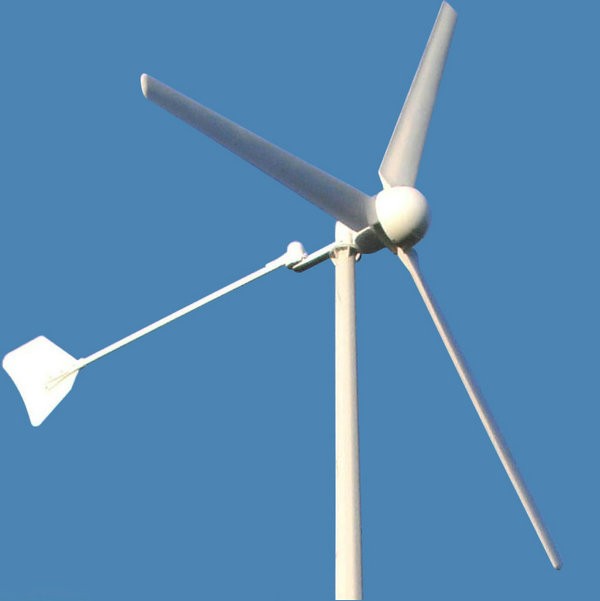

H3.8-2KW Wind Turbine

H3.8-2KW Wind Turbine

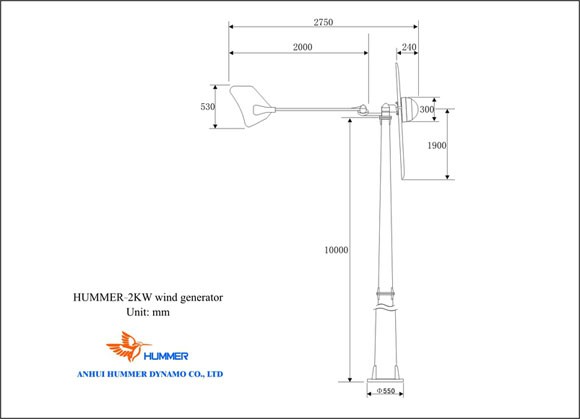

H3.8-2KW Wind Turbine Structure

H3.8-2KW Wind Turbine Structure

H3.8-2KW Wind Turbine Structure

H3.8-2KW Wind Turbine Structure

Hummer manufactures and offers advanced H3.8-2KW Wind Turbine specifically designed

for residential houses; farms; telecommunication stations; commercial wind farms; water-pumping,

etc. 2kw wind generator adopting SCF supercritical generator technology weighs only 25 kgs.

The furling tail design and the electromagnetic braking ensure its safety in strong wind.Cut-in

wind speed 2.5m/s makes it possible installing this 2kw wind turbine in low wind area.The front

generator design reduces the power losses and achieves high wind utilizing ratio.

H3.8-2KW Wind Turbine curve

H3.8-2KW Wind Turbine curve



H3.8-2000W Wind Turbine Specifications
Configuration 3 Blades, Horizontal axis, Upwind
Rotor Diameter Ф3.8 m / 12.5 ft
Swept Area 11.35 m2 / 122.2 ft2
Direction of Rotation Clockwise looking upwind
Blade Material Fiberglass reinforced composite
Rated Power 2 kW @ 11m/s / 24.6 mph
Maximum Output Power 2.2 kW @ 20m/s / 44.7 mph
Battery Bank Voltage 120 Vdc
System Output Voltage 110/220 Vac
Cut-in Wind Speed 3 m/s / 6.7 mph
Rated rotating rate 450 r/min
Working Wind Speed 3-25 m/s / 6.7-82.2  mph
Survival Wind Speed 50 m/s / 164 mph
Alternator Permanent magnet alternator, SCF technology
Alternator Weight 25 kg / 55.1 lbs
Generator Efficiency >0.80
Wind Energy Utilizing Ratio 0.45 Cp
Energy monitoring & User control LED display
Gearbox None, Direct drive with front generator design
Over Speed Regulation Passive furling tail design
Shutting Down Method Manual & Automatic electromagnetism Braking
Warranty 2 years for generator and 1 year for other parts

 Solutions In H3.8-2KW Wind Turbine

-H3.8-2KW Off Grid Wind Turbine
-H3.8-2KW Grid Tied Wind Turbine
-H3.8-2KW Wind Solar Hybrid System
-H3.8-2KW Off Grid 48V Wind Turbine
-H3.8-2KW Wind Solar Diesel Hybrid System

Our products are third party certified and during the past 10 years, H3.8-2KW Grid Tied Wind Turbine have

been exported  to 91 countries and areas, such as the USA, Canada, Australia, Germany, the

UK, Italy, France, India, Spain etc. For more information on H3.8-2KW Wind Turbine such as

users manuals, data sheet, PDF documents, certifications please email us


sales@allwindturbine.com or call 086 551 65314300
